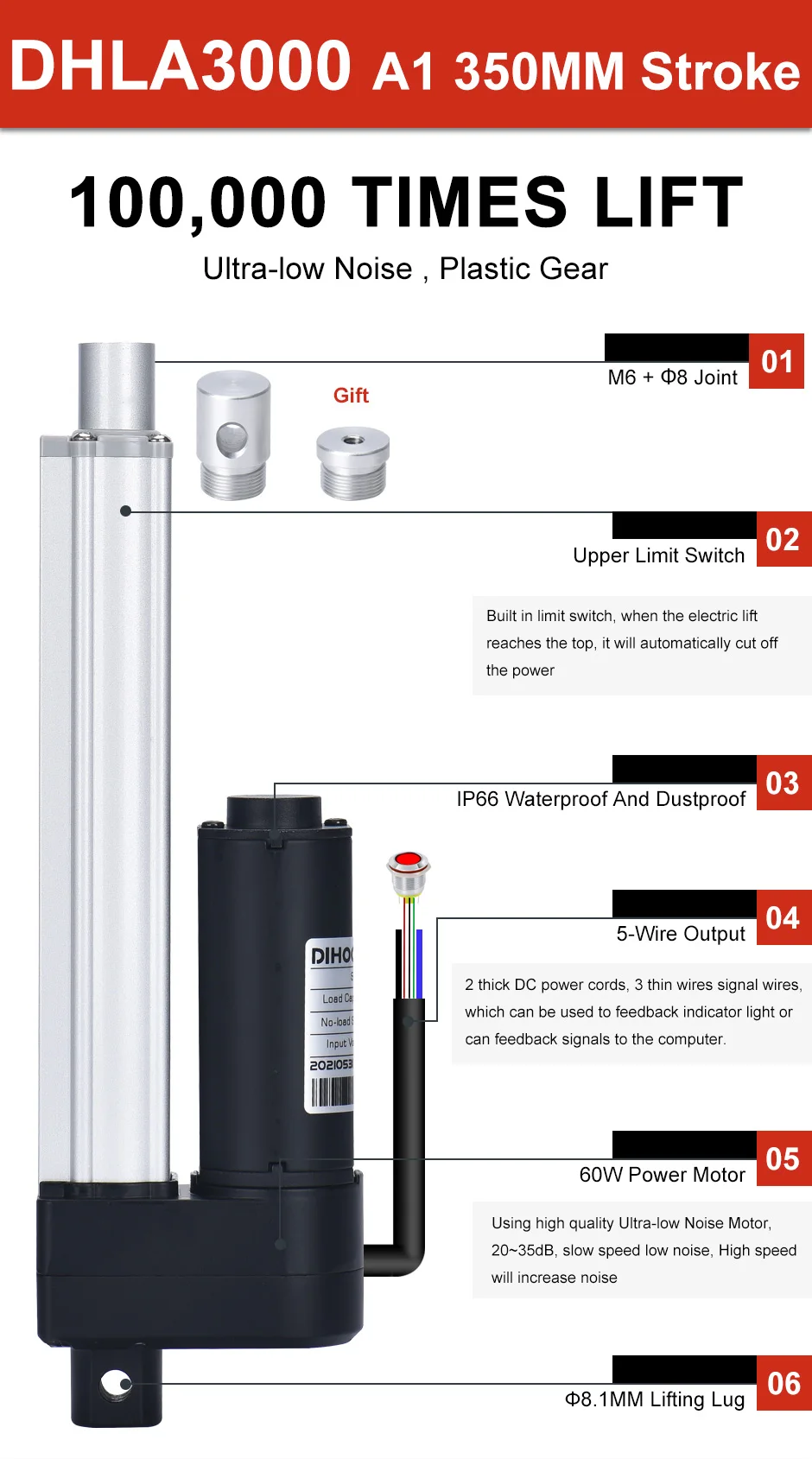

DHLA3000 350MM DC12V Stroke Linear Resonant Actuator Waterproof 2000N 15inch Linear Shaft Motor Table Lifting Column

----- Product Description DHLA3000 is newly developed 25dB low-noise design. It adopts 60W high-torque permanent magnet DC motor with a maximum load of 3000-3500N, the maximum speed can reach 110MM/S. It is a high-quality electric linear actuator. This product has stable operation, the same thrust and pull, and is adaptable...
Speed(RPM)
Ships From
Voltage(V)
-
+
$132.00

DIHOOL

99 In Stock

----- Product Description
DHLA3000 is newly developed 25dB low-noise design. It adopts 60W high-torque permanent magnet DC motor with a maximum load of 3000-3500N, the maximum speed can reach 110MM/S. It is a high-quality electric linear actuator. This product has stable operation, the same thrust and pull, and is adaptable to the environment Good performance, novel design, small size and high precision.

DHLA3000 electric linear actuator outer aluminum tube is treated with 27 oxidation processes, which has high hardness and a more beautiful appearance,Optional 304 stainless steel tube inner tube can be used in harsh industrial environments.

Mainly used in furniture, medical and other industries, Entertainment theater, can also replace the stainless steel inner tube, add waterproof and dustproof functions to be used in industrial environments.

----- Technical Parameters
Input Voltage: 12VDC/24VDC

Maximum Load: 3000N

Maximum Current: DC12V 6A / DC24V 3A

Motor Power: 60-72W

Maximum Speed: 110MM/S

Stroke: 50-1600MM (customized stroke)

Protection Level: IP43(default) / IP66

Working environment temperature: -25℃ to 65℃

Color: Silver + Black

Limit Switch: Built-in

Screw Type: T Type5-head Screw Rod

Work Cycle: 10% Work System, Maximum 24 Hour Continue Working

Product Certification: CE

Mechanical Life: More than 100,000 times

Warranty: 24 Months



Voltage

DC24V

Speed (MM/S)

5

10

15

20

26

30

40

50

66

88

110

Load Pull Capacity(N)

3000

1500

1200

1000

800

600

400

400

300

200

100

Load Push Capacity(N)

3000

1500

1200

1000

800

600

400

400

300

200

100

Self-locking Capacity(N)

4000

2000

1500

1200

1000

800

600

500

400

200

100

Voltage

DC12V

Speed (MM/S)

5

10

20

30

40

66

Load Pull Capacity(N)

2400

1200

600

400

300

200

Load Push Capacity(N)

2400

1200

600

400

300

200

Self-locking Capacity(N)

2400

1200

600

400

300

200

Stroke Length

30MM-1600MM

Operating Temperature

-25°C~+85°C

Limit Switches

Built-in

Operating Frequency

10% max 2min continuous use

Inner Tube

Aluminum tube

Lead screw Type

Type T

Installation Method

M6/M8/M10 Thread

Flat Plate

Ф6 / Ф8 / Ф10 Lifting Lug






Note: Some specifications need to be customized in batches, please contact us for details


----- Add Functions
·Hall Sensor ·Magnetic Induction Switch ·Upper And Lower Limit Feedback ·304 Stainless Steel Pipe


·IP66 Waterproof ·RS485 PC Control

----- Applicable Occasions

Electric lifting column, Electric telescopic rod for car sunshade,Solar panel tracker,Window opener,Electric lifting platform,Robotic arm






50MM Electric Linear Actuator Comparison

规格

Features

Maximum load

Installation method

The most cost-effective

Max Speed: 66MM/S
Max Stroke: 1000MM
Temperature: -15℃ ~ +60℃
Noise: 25dB~45dB
Motor Power: 30W
Optional Function: Limit Signal Feedback + Magnetic Induction
Quality: ★★★

1500N

Lifting Ear Ф8

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -25℃ ~ +65℃
Noise: 20dB~40dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality: ★★★★

3000N

Lifting Ear Ф8
+
Flat Bottom+M6


Best Quality

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -30℃ ~ +75℃
Noise: 25dB
Motor Power: 60W
Optional Function: IP66 | Hall Sensor | Built-in Magnet | Limit Signal Feedback
Inner Tube: High Hardness Aluminum | 27 Items Oxidation Treatments
Quality: ★★★★★

3000N

Lifting Ear Ф8+Ф8
+
Flat Bottom+M6
+
Flat Bottom+Ф8
+
Ф8+M6

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality: ★★★★

3000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1400MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 55W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality: ★★★

6000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1000MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 75W
Optional Function: Manual Control + Electric Control
Optional Function: Hall Sensor | Built-in Magnet | 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality: ★★★★

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 36MM/S
Max Stroke: 1000MM
Temperature: -25℃ ~ +65℃
Protection Level: IP54
Noise: 30dB
Motor Power: 60W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality: ★★★★

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 160MM/S
Max Stroke: 1000MM
Temperature: -30℃ ~ +65℃
Protection Level: IP65
Noise: 55dB
Motor Power: 260W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality: ★★★★

10000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 60MM/S
Max Stroke: 1000MM
Temperature: -20℃ ~ +65℃
Protection Level: IP66
Noise: 50dB
Motor Power: 250W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality: ★★★★★

12000N

Lifting Ear Ф8
