DHLA3000P 1200MM Stroke DC 12V 24V Motor Electric Linear Actuator 2000N Telescopic Rod Motorized Linear Slide Actuator

$12.80
  ----- Product Description DHLA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm. The stroke can be customized according to customer needs. This product has a compact installation size, a high-horsepower permanent magnet DC...
Speed(RPM)
Voltage(V)
-
+
$10.80

DIHOOL

99 In Stock



----- Product Description
DHLA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm. The stroke can be customized according to customer needs. This product has a compact installation size, a high-horsepower permanent magnet DC motor, and an ultra-quiet design. Suitable for medical, furniture, industrial and other industries.




----- Technical Parameters
Input Voltage: 12VDC/24VDC
Maximum Load: 3000N 24V / 2400N 12V
Maximum Current: 2.5A 24V / 5A 12V
Motor Power: 60W
Maximum Speed: 88MM/S
Stroke: 30-1600MM (customized stroke)
Protection Level: IP43
Working environment temperature: -20℃ to 65℃
Color: Silver+black
Limit Switch: Built-in
Screw Type: T Type
Work Cycle: 10% Work System, Maximum 5 Hour Continue Working
Product Certification: CE
Mechanical Life: More than 1000,00 times




Voltage

DC24V

Speed(MM/S)

5

10

13

15

20

30

40

52

66

88

Load Pull Capacity(N)

3000

1500

1200

1000

800

600

400

300

250

150

Load Push Capacity(N)

3000

1500

1200

1000

800

600

400

300

250

150

Self-locking Capacity(N)

3500

1800

1500

1200

1000

800

600

400

300

200

Voltage

DC12V

Speed(MM/S)

5

10

20

30

40

66









Load Pull Capacity(N)

2400

1000

600

400

300

200









Load Push Capacity(N)

2400

1000

600

400

300

200









Self-locking Capacity(N)

2400

1200

800

600

400

300












----- Applicable Occasions
Door Openers, TV lifts, Robotic Arms and Joints, Dynamic Seats, Presses, Test Instruments, Food Machinery, Ceramic Machinery, Welding Machinery,Spraying Equipment, Lifting Platformetc.

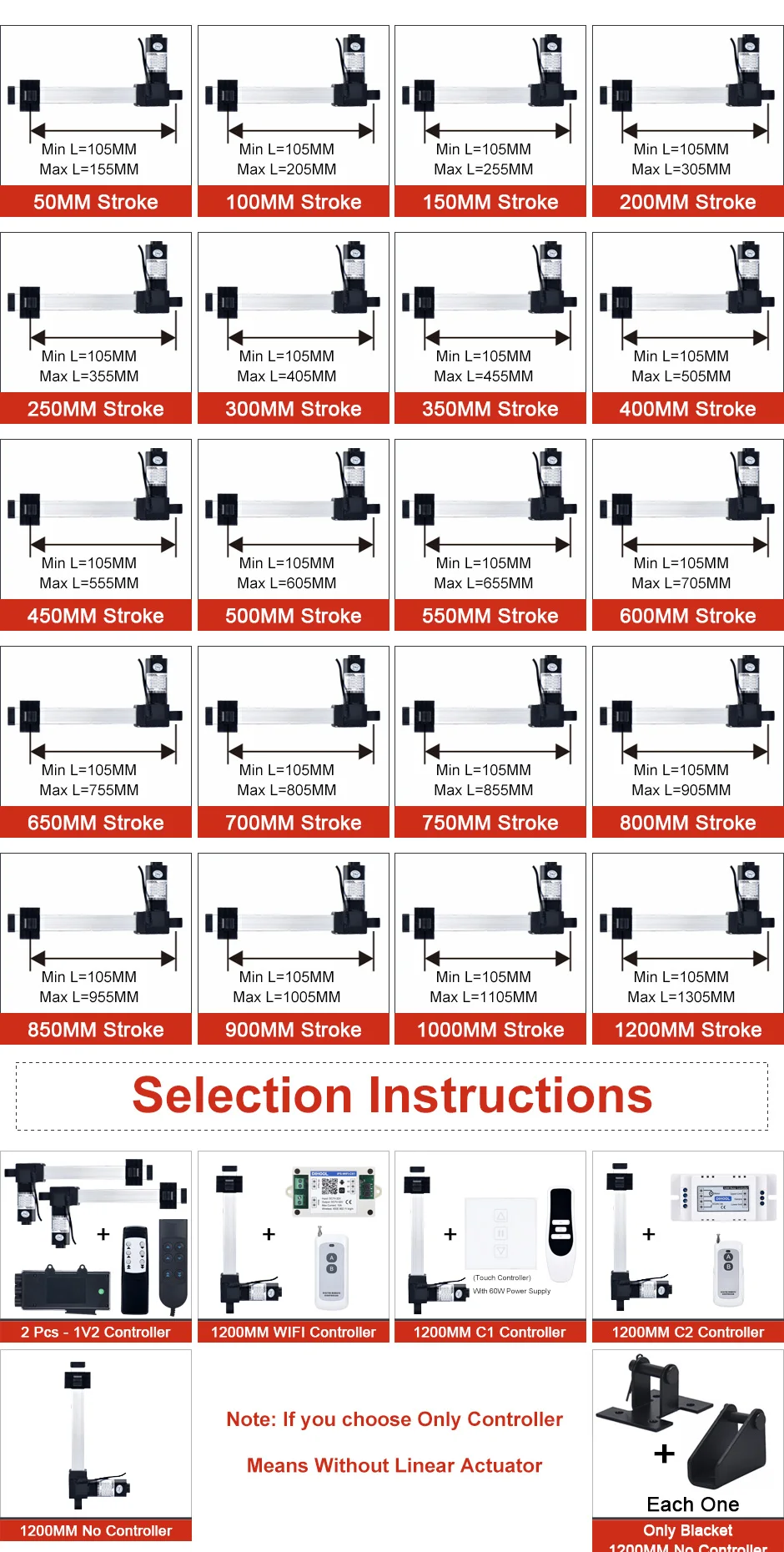

----- Package
If You Choice : DC24V 5MMS 3000N + 50MM No Controller--Only DHLA3000P 50MM Stroke DC24V 5MM/S 3000N Linear Actuator
If You Choice : DC24V 5MMS 3000N + 50MM WIFI Controller--Only DHLA3000P 50MM Stroke DC24V 5MM/S 3000N Linear Actuator + WIFI Controller + Remote Control
If You Choice : Only Blacket + 50MM No Controller --Only Blacket A 1pc + Blacket B 1pc






50MM Electric Linear Actuator Comparison

规格

Features

Maximum load

Installation method

The most cost-effective

Max Speed: 66MM/S
Max Stroke: 1000MM
Temperature: -15℃ ~ +60℃
Noise: 25dB~45dB
Motor Power: 30W
Optional Function: Limit Signal Feedback + Magnetic Induction
Quality:

1500N

Lifting Ear Ф8

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -25℃ ~ +65℃
Noise: 20dB~40dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

3000N

Lifting Ear Ф8
+
Flat Bottom+M6


Best Quality

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -30℃ ~ +75℃
Noise: 25dB
Motor Power: 60W
Optional Function: IP66 | Hall Sensor | Built-in Magnet | Limit Signal Feedback
Inner Tube: High Hardness Aluminum | 27 Items Oxidation Treatments
Quality:

3000N

Lifting Ear Ф8+Ф8
+
Flat Bottom+M6
+
Flat Bottom+Ф8
+
Ф8+M6

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

3000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1400MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 55W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

6000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1000MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 75W
Optional Function: Manual Control + Electric Control
Optional Function: Hall Sensor | Built-in Magnet | 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 36MM/S
Max Stroke: 1000MM
Temperature: -25℃ ~ +65℃
Protection Level: IP54
Noise: 30dB
Motor Power: 60W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 160MM/S
Max Stroke: 1000MM
Temperature: -30℃ ~ +65℃
Protection Level: IP65
Noise: 55dB
Motor Power: 260W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

10000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 60MM/S
Max Stroke: 1000MM
Temperature: -20℃ ~ +65℃
Protection Level: IP66
Noise: 50dB
Motor Power: 250W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

12000N

Lifting Ear Ф8
