DHLA750 600MM Stroke Tubular Motor Linear Actuator 12V Waterproof With Wireless Controller For Lifting Mechanism And Electric

$67.70
----- Product Description DHLA750 electric linear actuator was first developed. The product has no gearbox structure. The motor directly drives the drive shaft to work. The noise is relatively large. Our company has reduced the noise through multiple modifications to the structure and improved the load capacity of the product....
Speed(RPM)
Voltage(V)
-
+
$65.70

DIHOOL

99 In Stock

----- Product Description

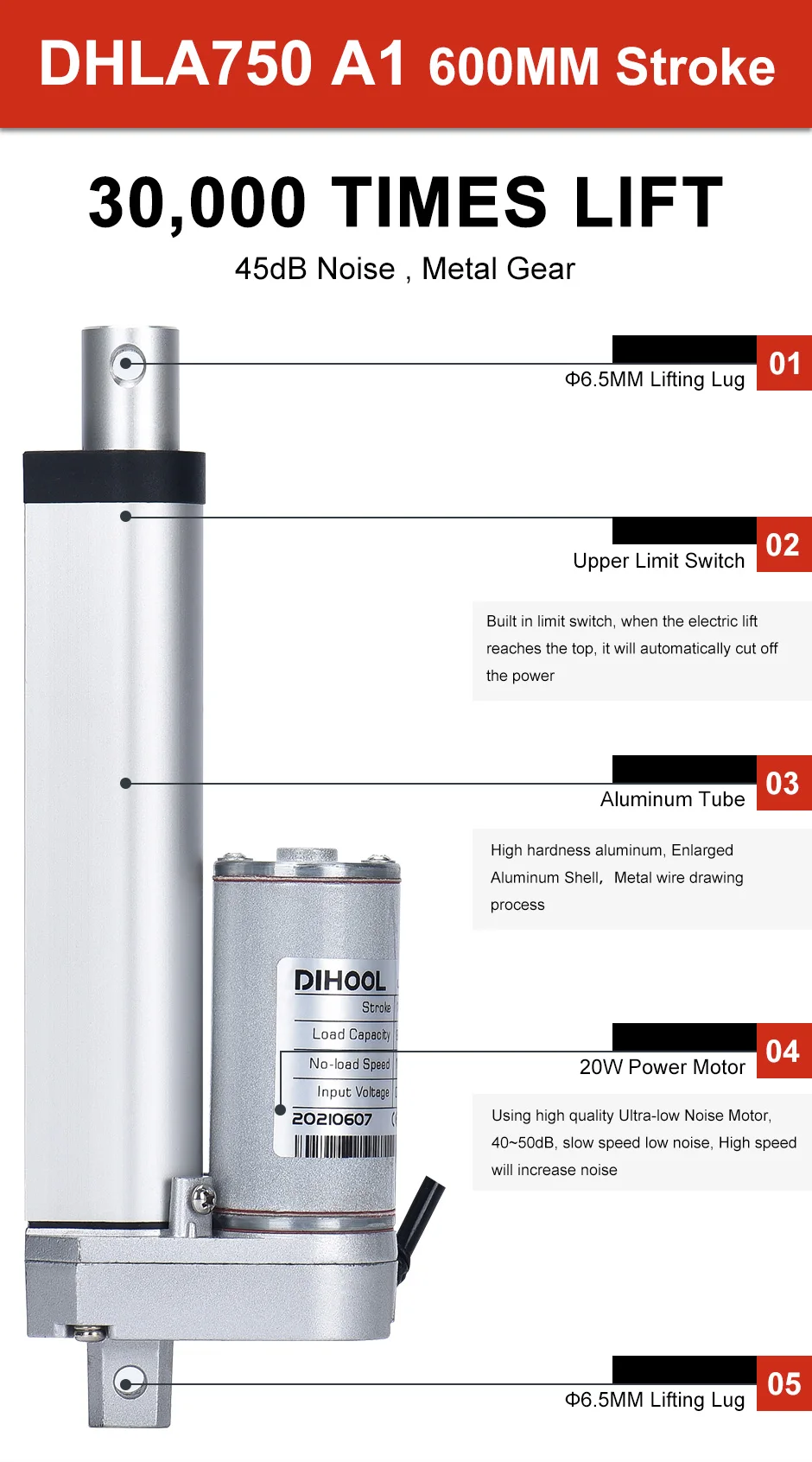

DHLA750 electric linear actuator was first developed. The product has no gearbox structure. The motor directly drives the drive shaft to work. The noise is relatively large. Our company has reduced the noise through multiple modifications to the structure and improved the load capacity of the product. The maximum load force can reach 1500N, and the self-locking force is 100KG,Noise reduced from 50db to 40dB.

This product is suitable for construction machinery, agricultural machinery, environmental protection and other industries.



----- Technical Parameters

Input Voltage: 12VDC/24VDC

Maximum Load: 1500N

Maximum Current: 1.5A

Motor Power: 20W

Maximum Speed: 90MM/S

Stroke: 30-1000MM (customized stroke)

Protection Level: IP43

Noise: 40dB-50dB

Working environment temperature: 0℃ to 40℃

Color: Silver

Limit Switch: Built-in

Screw Type: T Type

Work Cycle: 10% Work System, Maximum 2 Minutes Continue Working

Product Certification: CE

Mechanical Life: More than 10,000 times

Warranty: 12 months





Voltage

DC12V / DC24V

Speed (MM/S)

5

10

20

30

50

90

Load Pull Capacity(N)

1000

700

350

200

150

70

Load Push Capacity(N)

1500

1000

500

300

200

100

Self-locking Capacity(N)

1000

700

350

200

150

70





50MM Electric Linear Actuator Comparison

Specifications

Features

Maximum load

Installation method

The most cost-effective

Max Speed: 66MM/S
Max Stroke: 1000MM
Temperature: -15℃ ~ +60℃
Noise: 25dB~45dB
Motor Power: 30W
Optional Function: Limit Signal Feedback + Magnetic Induction
Quality:

1500N

Lifting Ear Ф8

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -25℃ ~ +65℃
Noise: 20dB~40dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

3000N

Lifting Ear Ф8
+
Flat Bottom+M6


Best Quality

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: -30℃ ~ +75℃
Noise: 25dB
Motor Power: 60W
Optional Function: IP66 | Hall Sensor | Built-in Magnet | Limit Signal Feedback
Inner Tube: High Hardness Aluminum | 27 Items Oxidation Treatments
Quality:

3000N

Lifting Ear Ф8+Ф8
+
Flat Bottom+M6
+
Flat Bottom+Ф8
+
Ф8+M6

Max Speed: 88MM/S
Max Stroke: 1600MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 60W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

3000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1400MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 55W
Optional Function: Hall Sensor | Built-in Magnet | Limit Signal Feedback
Quality:

6000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 40MM/S
Max Stroke: 1000MM
Temperature: 0℃ ~ +40℃
Protection Level: IP43
Noise: 30dB
Motor Power: 75W
Optional Function: Manual Control + Electric Control
Optional Function: Hall Sensor | Built-in Magnet | 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 36MM/S
Max Stroke: 1000MM
Temperature: -25℃ ~ +65℃
Protection Level: IP54
Noise: 30dB
Motor Power: 60W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

8000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 160MM/S
Max Stroke: 1000MM
Temperature: -30℃ ~ +65℃
Protection Level: IP65
Noise: 55dB
Motor Power: 260W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

10000N

Lifting Ear Ф8
+
Flat Bottom+M6

Max Speed: 60MM/S
Max Stroke: 1000MM
Temperature: -20℃ ~ +65℃
Protection Level: IP66
Noise: 50dB
Motor Power: 250W
Inner Tube: 304 Stainless Steel Pipe
Optional Function: Upper And Lower Limit Signal Feedback
Quality:

12000N

Lifting Ear Ф8
