TECHNICAL PARAMETERS Model DHLCT-25 DHLCT-40 DHLCT-100 DHLCT-150 DHLCT-C2-80 Linear Actuator DHLA3000L-132/100MM DHLA3000L-132/50MM DHLA6000-132/150MM DHLA8000-132/150MM DHLA8000-132/170MM Load Capacity 25KG/250N 40KG/400N 100KG/1000N 150KG/1500N 80KG/800N Speed 13.5MM/S 23MM/S 10MM/S 10MM/S 18MM/S Min Height 120MM 115MM 210MM 195MM 265MM Max Height 390MM 355MM 580MM 680MM 1200MM Stroke 270MM 235MM 370MM 485MM 935MM Size (L*W*H)...
TECHNICAL PARAMETERS
|
Model
|
DHLCT-25 | DHLCT-40 | DHLCT-100 | DHLCT-150 | DHLCT-C2-80 | |
|
Linear Actuator
|
DHLA3000L-132/100MM | DHLA3000L-132/50MM | DHLA6000-132/150MM | DHLA8000-132/150MM | DHLA8000-132/170MM | |
|
Load Capacity
|
25KG/250N | 40KG/400N | 100KG/1000N | 150KG/1500N | 80KG/800N | |
|
Speed
|
13.5MM/S | 23MM/S | 10MM/S | 10MM/S | 18MM/S | |
|
Min Height
|
120MM | 115MM | 210MM | 195MM | 265MM | |
|
Max Height
|
390MM | 355MM | 580MM | 680MM | 1200MM | |
|
Stroke
|
270MM | 235MM | 370MM | 485MM | 935MM | |
|
Size (L*W*H)
|
400*320*120MM | 580*370*115MM | 590*420*210MM | 760*435*195MM | 760*435*265MM | |
|
Weight
|
6KG | 8KG | 13.5KG | 16KG | 20KG | |
|
Voltage
|
DC12 / DC24V / Hall 29V-32V
|
|||||
|
Surface Treatment
|
Electrophoretic Black
|
|||||
|
Operating Temperature
|
-10°C~+65°C
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Optional Configuration
|
Hall Sensor: Position Display, Position Memory, Precise Control
Magnetic Induction Sensoe: Adjust Rising and Falling Limit Upper and Lower Limit Feedback |
|||||

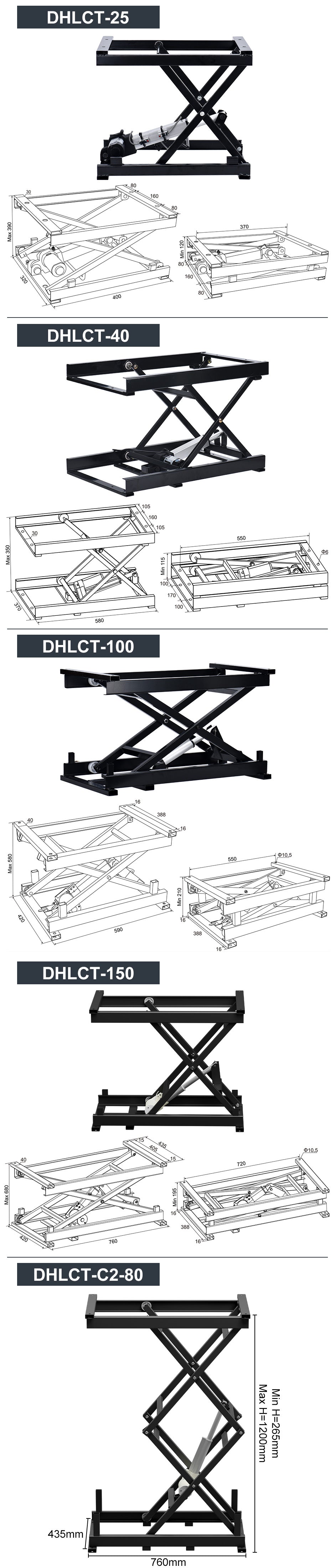

OUTLINE DIMENSION DRAWING
