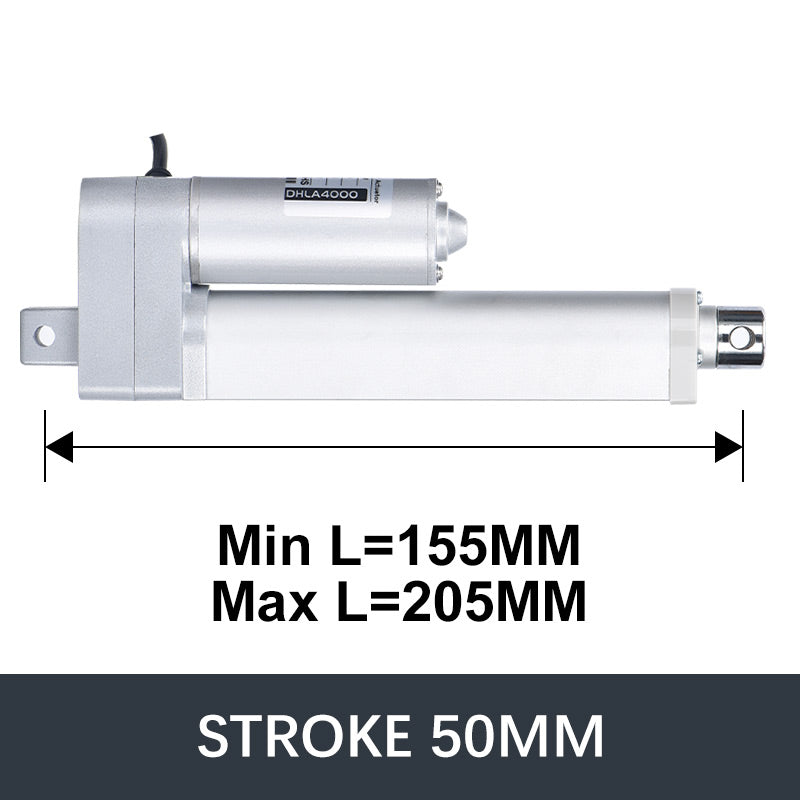

Hall Electric Linear Motion Actuator 24V DC Motor 4000N 880LB Load - DHLA4000
$78.09
TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 10 15 20 Load Pull Capacity(N) 4000 2000 1300 800 Load Push Capacity(N) 4000 2000 1300 800 Self-locking Capacity(N) 4000 2000 1300 800 Stroke Length 50mm-1000mm (≥800mm stroke, Max load 2000N) Motor Power DC12V 72W | DC24V 72W Operating Temperature 0°C~+40°C Limit Switches...
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
5 | 10 | 15 | 20 | ||
|
Load Pull Capacity(N)
|
4000 | 2000 | 1300 | 800 | ||
|
Load Push Capacity(N)
|
4000 | 2000 | 1300 | 800 | ||
|
Self-locking Capacity(N)
|
4000 | 2000 | 1300 | 800 | ||
|
Stroke Length
|
50mm-1000mm (≥800mm stroke, Max load 2000N)
|
|||||
|
Motor Power
|
DC12V 72W | DC24V 72W
|
|||||
|
Operating Temperature
|
0°C~+40°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Noise
|
<30dB
|
|||||
|
Operating Frequency
|
10% max 60min. continuous use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead screw Type
|
Type T
|
|||||
|
Mechanical Life
|
More than 50,000 times
|
|||||
OUTLINE DIMENSION DRAWING
Optional Configuration
