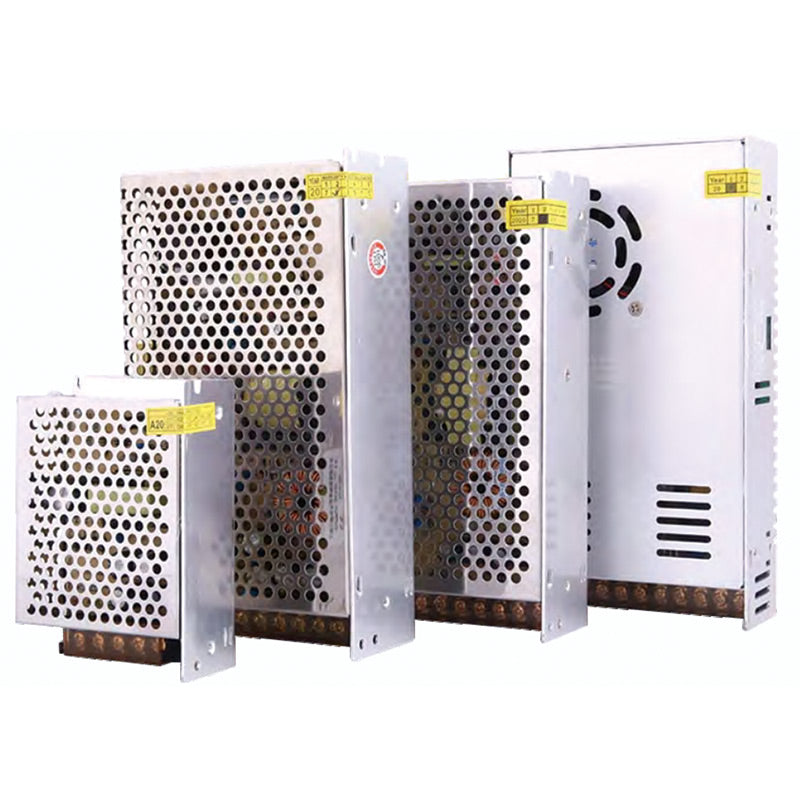

IPS-S Power Supply

IPS-S Power Supply

$0.00
TECHNICAL PARAMETERS Model IPS-S Series Input Voltage 110V/220VAC±20%, 47-63Hz Working Efficiency ≥80% Leakage Current 1mA/240VAC Load Stability ±2% Receiving Frequency 47-63Hz Operation Temperature -10℃~+60℃ Operating Humidity 20%-90RH Protection Function Overload Protection, Overvoltage Protection, Short Circuit Protection Power Output 75W Voltage DC12V DC15V DC24V DC36V DC48V Max Current 6.2A 5A 3.1A...
Model
-
+
$0.00

DIHOOL

100 In Stock

Add to wishlist

TECHNICAL PARAMETERS

Model IPS-S Series Input Voltage 110V/220VAC±20%, 47-63Hz
Working Efficiency ≥80% Leakage Current 1mA/240VAC
Load Stability ±2% Receiving Frequency 47-63Hz
Operation Temperature -10℃~+60℃ Operating Humidity 20%-90RH
Protection Function Overload Protection, Overvoltage Protection, Short Circuit Protection

Power Output
75W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 6.2A 5A 3.1A 2A 1.5
Dimensions L:159 W:97 H:38
120W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 12.5A 10A 6.3A 4.2A 3.2A
Dimensions L:199 W:98 H:38
250W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 20A 16A 10A 7A 5A
Dimensions L:199 W:110 H:50
400W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 33A 26A 16A 11A 8.3A
Dimensions L:199 W:110 H:50
600W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 50A 40A 25A 16.7A 12.5A
Dimensions L:238 W:124 H:65
1000W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 80A 64A 40A 27A 20A
Dimensions L:291 W:132 H:68
1500W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 125A 100A 60A 40A 30A
Dimensions L:291 W:132 H:68
3000W Voltage DC12V DC15V DC24V DC36V DC48V
Max Current 240A 200A 120A 80A 60A
Dimensions L:312 W:190 H:95
Remark Some products need to be customized, please contact us if necessary
