Movable Tatami Lifting Table Iron Plate 29~32V DC Motor Hall Controlle

Movable Tatami Lifting Table Iron Plate 29~32V DC Motor Hall Controller 1600N 352LB Load - DHLCEY-Hall-C4

$520.37

TECHNICAL PARAMETERS Model DHLCE260Y DHLCE310Y DHLCE360Y DHLCE410Y Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 350 400 450 500 Final Height FH (MM) 640 760 890 800 Stroke Length S (MM) 290 360 440 300 Section 3 3 3 2 Voltage Hall DC29~32V Speed (MM/S) 5 8 12...

DHLCE260Y

DHLCE310Y

DHLCE360Y

DHLCE410Y

Hall-C4-DC29-32V5MMS1600N Sold Out

Hall-C4-DC29-32V8MMS1000N Sold Out

Hall-C4-DC29-32V12MMS600N Sold Out

Quantity:

Subtotal:$520.37

Brand: DIHOOL

Movement:

Availability: 100 In Stock

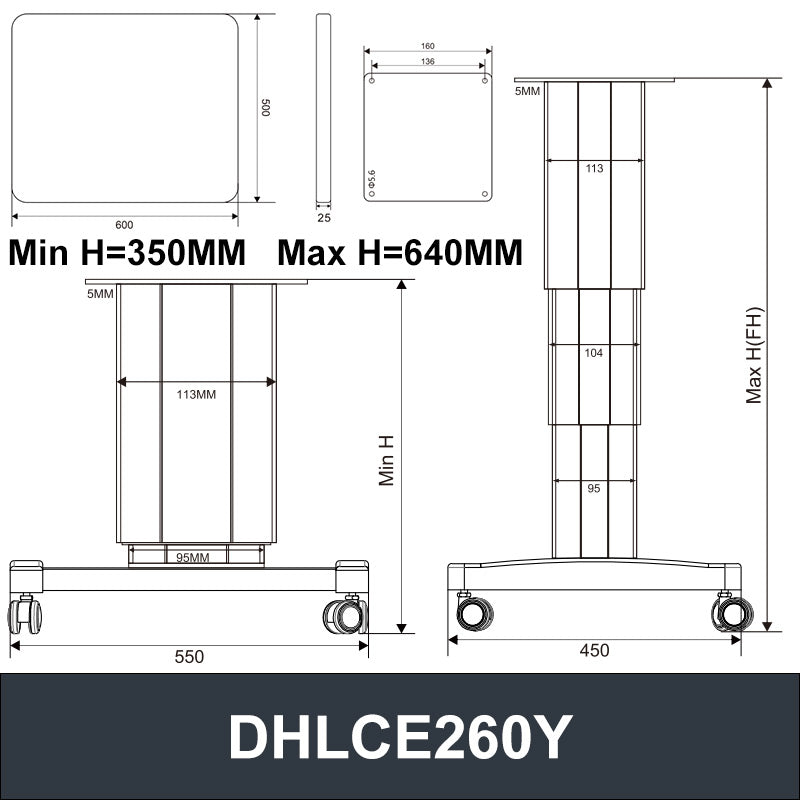

TECHNICAL PARAMETERS

Model	DHLCE260Y	DHLCE310Y	DHLCE360Y	DHLCE410Y
Panel Size	160*160	160*160	160*160	152*152
Initial Height H (MM)	350	400	450	500
Final Height FH (MM)	640	760	890	800
Stroke Length S (MM)	290	360	440	300
Section	3	3	3	2

Voltage	Hall DC29~32V
Speed (MM/S)	5	8	12
Load Push Capacity (N)	1600	1000	600
Load Pull Capacity (N)	1600	1000	600
Operating Temperature	0°C~+40°C
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 1 Hour Continue Working
Color	Silver White
Material	Aluminum Body, Iron Panel
Note	*Other specifications, aluminum shell color and connection panel size can be customized.
