Tatami Lifting Column Aluminum Plate 29V~32V DC Motor Hall Controller 1600N 352LB Load - DHLCE-AL-Hall-C4
$259.54
TECHNICAL PARAMETERS Model DHLCE270A DHLCE320A DHLCE370A DHLCE420A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE270B DHLCE320B DHLCE370B DHLCE420B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 275 325 370 430 Final Height FH (MM) 550 700 800 730 Stroke Length S (MM) 275 375 430 300 Section 3...
TECHNICAL PARAMETERS
|
Model
|
DHLCE270A | DHLCE320A | DHLCE370A | DHLCE420A |
|
Panel Size
|
200*200 | 200*200 | 200*200 | 200*200 |
|
Model
|
DHLCE270B | DHLCE320B | DHLCE370B | DHLCE420B |
|
Panel Size
|
160*160 | 160*160 | 160*160 | 152*152 |
|
Initial Height H (MM)
|
275 | 325 | 370 | 430 |
|
Final Height FH (MM)
|
550 | 700 | 800 | 730 |
|
Stroke Length S (MM)
|
275 | 375 | 430 | 300 |
|
Section
|
3 | 3 | 3 | 2 |
|
Voltage
|
DC29V~32V
|
|||||
|
Speed (MM/S)
|
5 | 8 | 12 | |||
|
Load Push Capacity (N)
|
1600 | 1000 | 600 | |||
|
Load Pull Capacity (N)
|
1600 | 1000 | 600 | |||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Material
|
Aluminum Body, Aluminum Panel
|
|||||
|
Note
|
*Other specifications, aluminum shell color and connection panel size can be customized.
|
|||||

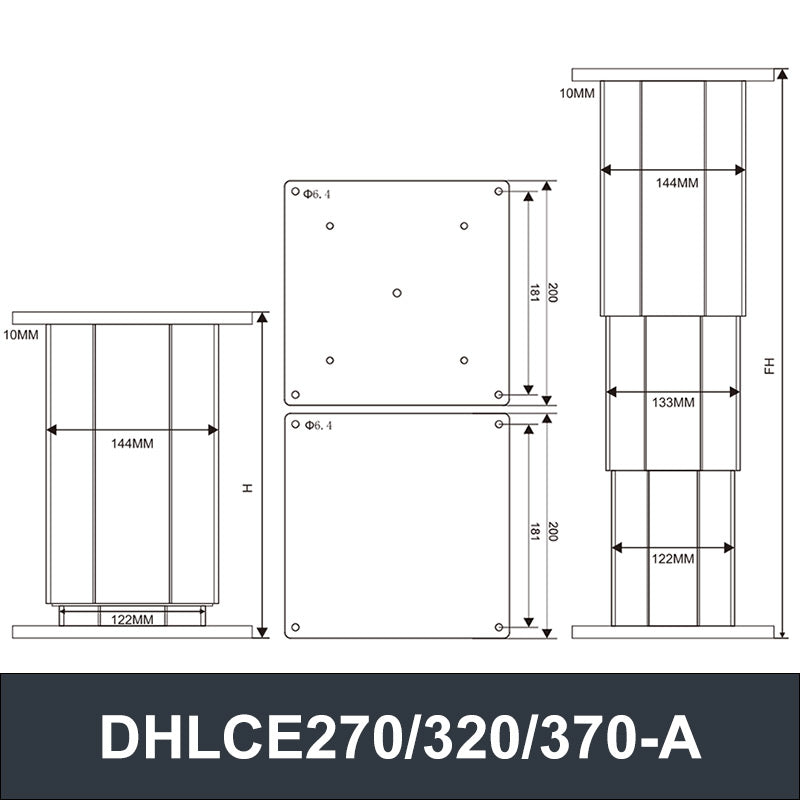

OUTLINE DIMENSION DRAWING
