Electric Linear Motion Actuator 24V DC Motor 2000N 440LB Load - DHLA35-A1
$48.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 8 15 22 Load Pull Capacity(N) 2500 1800 1000 Load Push Capacity(N) 2500 1800 1000 Self-locking Capacity(N) 2500 1800 1000 Stroke Length 50MM~1000MM Operating Temperature -0°C~+40°C Limit...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
8 | 15 | 22 | |||
|
Load Pull Capacity(N)
|
2500 | 1800 | 1000 | |||
|
Load Push Capacity(N)
|
2500 | 1800 | 1000 | |||
|
Self-locking Capacity(N)
|
2500 | 1800 | 1000 | |||
|

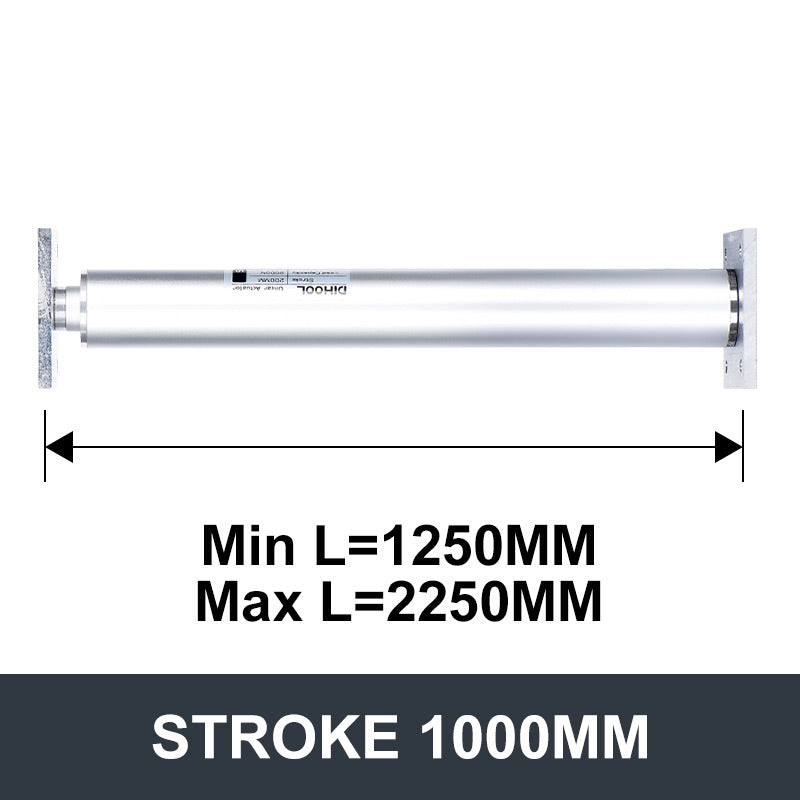

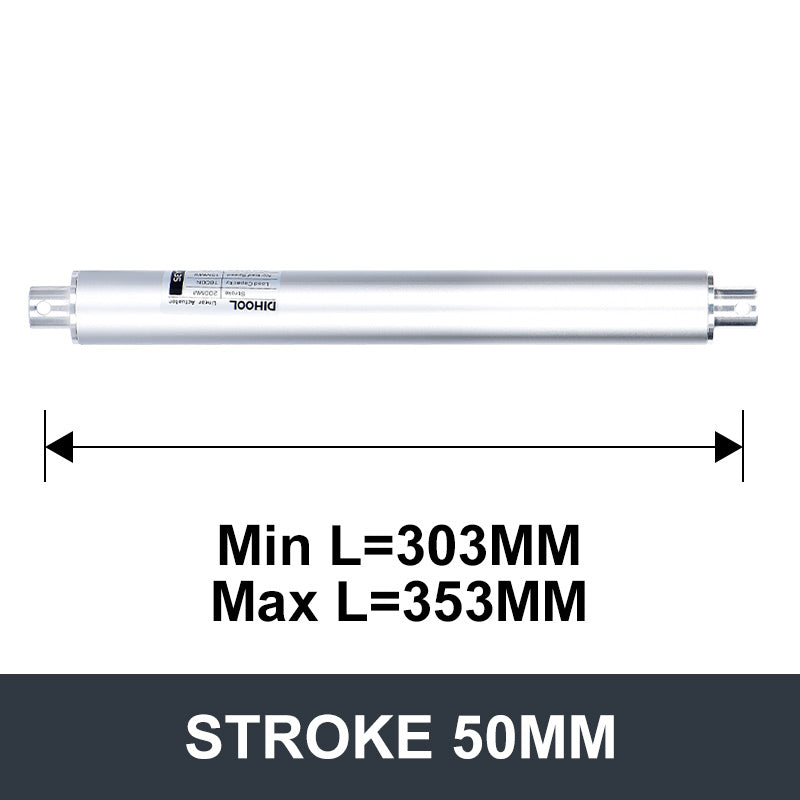

Stroke Length
|
50MM~1000MM
|
|||||
|
Operating Temperature
|
-0°C~+40°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead Screw Type
|
Type T
|
|||||
OUTLINE DIMENSION DRAWING
