Electric Linear Motion Actuator 12V DC Motor 2000N 440LB Load - DHLA35-A2

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 8 15 22 Load Pull Capacity(N) 2000 1500 800 Load Push Capacity(N) 2000 1500 800 Self-locking Capacity(N) 2000 1500 800 Stroke Length 50MM~1000MM Operating Temperature -0°C~+40°C Limit...
STROKE
SPEED
-
+
$48.00

DIHOOL

50 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Speed (MM/S)
8 15 22
Load Pull Capacity(N)
2000 1500 800
Load Push Capacity(N)
2000 1500 800
Self-locking Capacity(N)
2000 1500 800

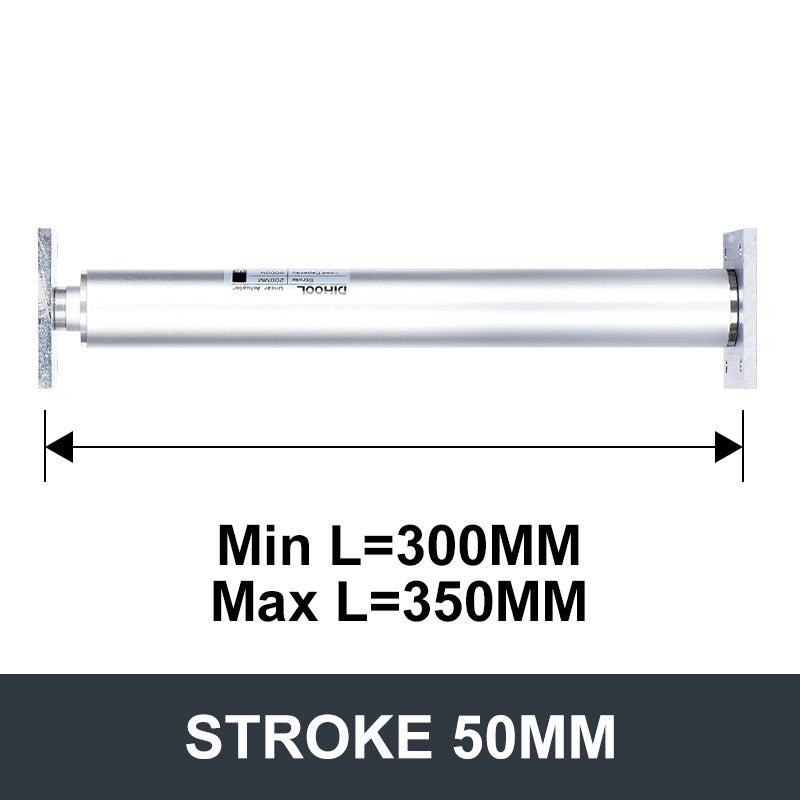

Stroke Length
50MM~1000MM
Operating Temperature
-0°C~+40°C
Limit Switches
Built-in
Operating Frequency
10% Max 2Min. Continuous Use
Inner Tube
Aluminum tube
Lead Screw Type
Type T

OUTLINE DIMENSION DRAWING
