Electric Linear Motion Actuator 24V DC Motor 8000N 1760LB Load - DHLA8000L
$38.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 8 10 15 20 24 30 40 60 Load Pull Capacity(N) 7000 6000 5000 3000 2500 2000 1500 1200 400 Load Push Capacity(N) 8000 7000 6000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||||||
|
Speed (MM/S)
|
5 | 8 | 10 | 15 | 20 | 24 | 30 | 40 | 60 | |
|
Load Pull Capacity(N)
|
7000 | 6000 | 5000 | 3000 | 2500 | 2000 | 1500 | 1200 | 400 | |
|
Load Push Capacity(N)
|
8000 | 7000 | 6000 | 4000 | 3000 | 2500 | 2000 | 1500 | 500 | |
|
Self-locking Capacity(N)
|
8000 | 7000 | 6000 | 4000 | 3000 | 2500 | 2000 | 1500 | 500 | |
|

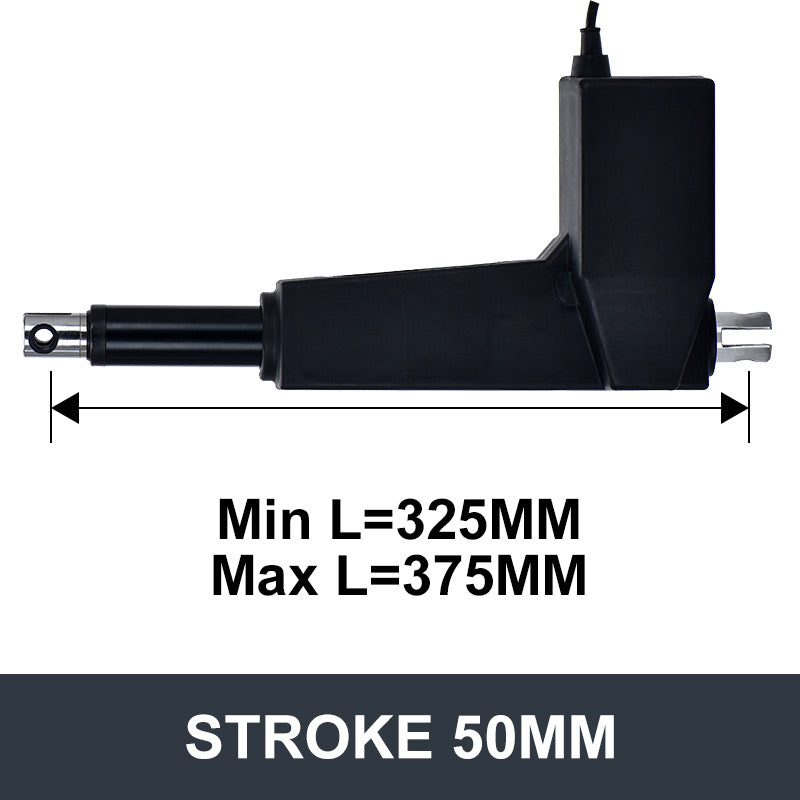

Stroke Length
|
50mm-1000mm
|
|||||||||
|
Operating Temperature
|
-25°C~+65°C
|
|||||||||
|
Limit Switches
|
Built-in
|
|||||||||
|
Motor Power
|
75W
|
|||||||||
|
Operating Frequency
|
10% continuous work for 2 minutes
|
|||||||||
|
Protection Class
|
IP54
|
|||||||||
|
Color
|
Black and White
|
|||||||||
OUTLINE DIMENSION DRAWING
