DHLT3-L2 L-shaped Lifting Table(with line slot)
$360.00
DHLT3-L2 elevating table, as a new technological innovation and invention product, has a huge impact on human scientific and technological progress. Now elevating table has been used by a large number of people, all need to adjust the position of the occasion, can use elevating table. This product is suitable...
DHLT3-L2 elevating table, as a new technological innovation and invention product, has a huge impact on human scientific and technological progress. Now elevating table has been used by a large number of people, all need to adjust the position of the occasion, can use elevating table. This product is suitable for office workers, such as Internet workers, educators, writers, advertising media professionals and game lovers.
TECHNICAL PARAMETERS
| Model | DHLT3-L2 |
| Voltage | AC100~240V |
| Height Adjustable Range | 610~1260MM |
| Boader Adjustable Range | L1080mm*W265mm*H185mm+L790mm*W400mm *H160mm |
| Width | 575MM |
| Number Of Motors | 3 |
| Section | 3 |
| Load Capacity | 2400N | 240kg |
| Speed | 32MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Controller | Hall Controller | With APP Hall Controller |
| Customized | Table Leg | Hand Control | Color |

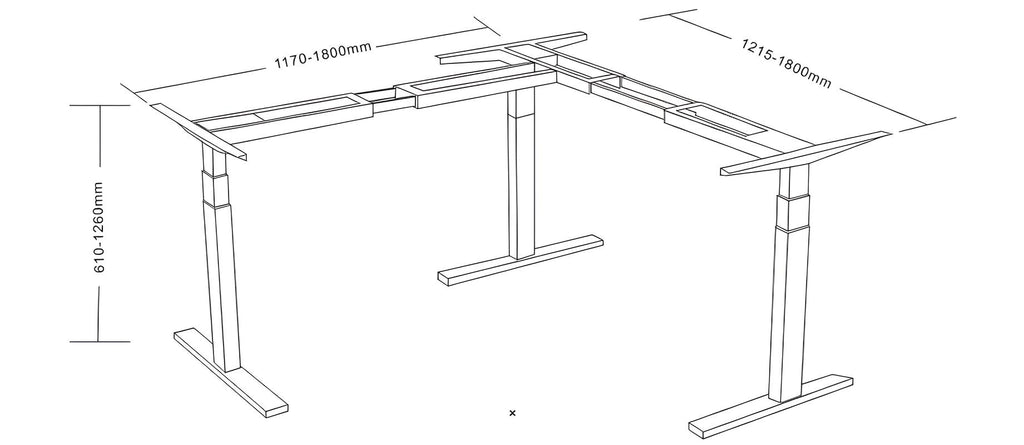

OUTLINE DIMENSION DRAWING
