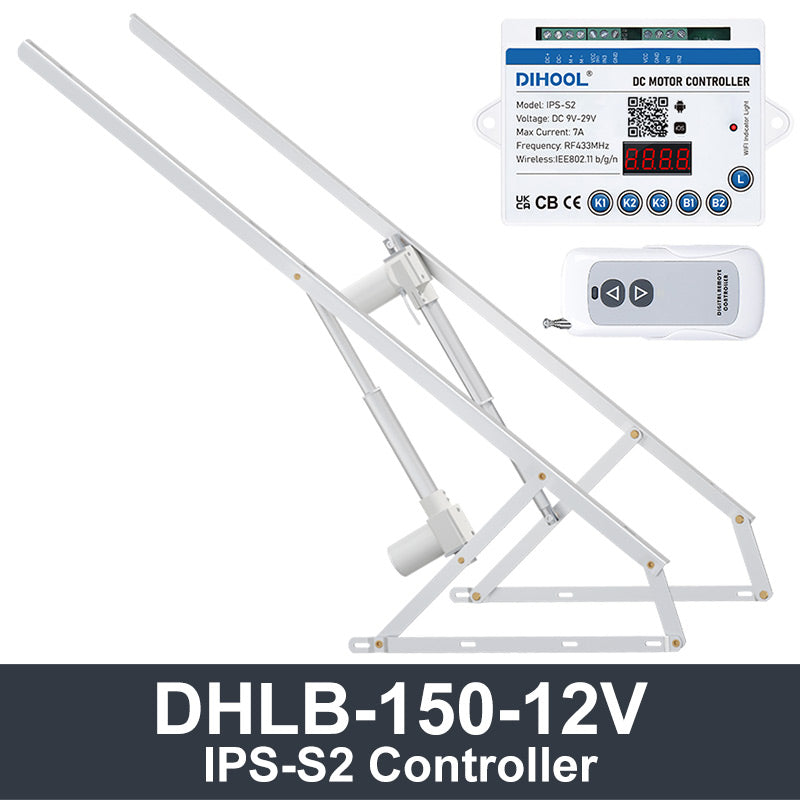

DHLB Electric Lifting Bracket DC 12V/24V/Hall Motor 1500N 330LB Load - DHLB-150
$180.00
TECHNICAL PARAMETERS Model DHLB-60 DHLB-90 DHLB-110 DHLB-150 Load Capacity 50KG 80KG 120KG 150KG Speed 1.43°/s 0.88°/s 0.88°/s 0.9°/s Length 610MM 900MM 1100MM 1500MM Open Angle 40° 44° 44° 45° Installation Angle 0° -3.1° -2° -1° Voltage DC12~19V or DC24~32V Operating Temperature -10°C~+60°C IP Grade IP43 Limit Switches Built-in Operating Frequency...
TECHNICAL PARAMETERS
|
Model
|
DHLB-60 | DHLB-90 | DHLB-110 | DHLB-150 | ||
|
Load Capacity
|
50KG | 80KG | 120KG | 150KG | ||
|
Speed
|
1.43°/s | 0.88°/s | 0.88°/s | 0.9°/s | ||
|
Length
|
610MM | 900MM | 1100MM | 1500MM | ||
|
Open Angle
|
40° | 44° | 44° | 45° | ||
|
Installation Angle
|
0° | -3.1° | -2° | -1° | ||
|
Voltage
|
DC12~19V or DC24~32V
|
|||||
|
Operating Temperature
|
-10°C~+60°C
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
White or Black
|
|||||
OUTLINE DIMENSION DRAWING
