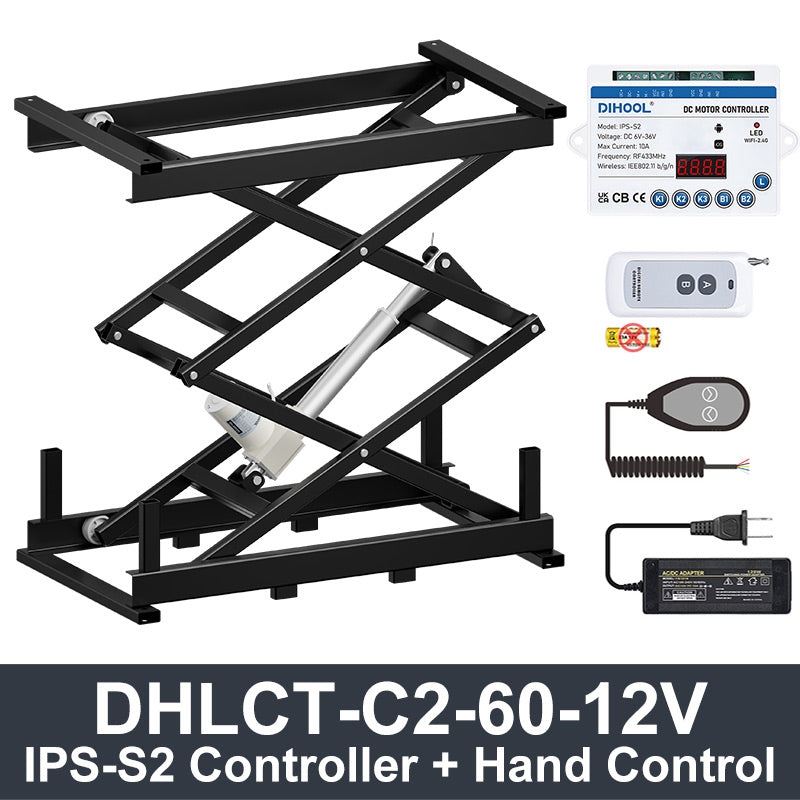

DHLCT-C2-60 Electric Scissor Lift 12V/24V DC Motor 600N 132LB Load
$270.00
TECHNICAL PARAMETERS Model DHLCT-25 DHLCT-40 DHLCT-120 DHLCT-150 DHLCT-C2-80 DHLCT-C2-60 Load Capacity 60KG/600N 40KG/400N 120KG/1200N 150KG/1500N 80KG/800N 60KG/600N Speed 13.5MM/S 23MM/S 10MM/S 10MM/S 20MM/S 16MM/S Min Height 100MM 115MM 210MM 195MM 265MM 265MM Max Height 370MM 345MM 580MM 680MM 1100MM 1270MM Stroke 270MM 230MM 370MM 485MM 835MM 1005MM Size (L*W*H) 400*320*100MM...
TECHNICAL PARAMETERS
|
Model
|
DHLCT-25 | DHLCT-40 | DHLCT-120 | DHLCT-150 | DHLCT-C2-80 | DHLCT-C2-60 |
|
Load Capacity
|
60KG/600N | 40KG/400N | 120KG/1200N | 150KG/1500N | 80KG/800N | 60KG/600N |
|
Speed
|
13.5MM/S | 23MM/S | 10MM/S | 10MM/S | 20MM/S | 16MM/S |
|
Min Height
|
100MM | 115MM | 210MM | 195MM | 265MM | 265MM |
|
Max Height
|
370MM | 345MM | 580MM | 680MM | 1100MM | 1270MM |
|
Stroke
|
270MM | 230MM | 370MM | 485MM | 835MM | 1005MM |
|
Size (L*W*H)
|
400*320*100MM | 580*370*115MM | 590*420*210MM | 760*420*195MM | 760*420*265MM | 760*420*265MM |
|
Weight
|
6KG | 8KG | 13.5KG | 16KG | 20KG | 20KG |
|
Voltage
|
DC12~19V / DC24~32V / Hall 29V-32V
|
|||||
|
Surface Treatment
|
Electrophoretic Black
|
|||||
|
Operating Temperature
|
-10°C~+65°C
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Optional Configuration
|
Hall Sensor: Position Display, Position Memory, Precise Control
Magnetic Induction Sensor: Adjust Rising and Falling Limit Upper and Lower Limit Feedback |
|||||
OUTLINE DIMENSION DRAWING
Optional Configuration
