Electric Lifting Column 12V DC Motor 7500N 1650LB Load With Controller - DHLC8000-A
$190.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12~19V Speed (MM/S) 3.3 4.5 9 14 24 Load Pull Capacity (N) 7500 5500 2700 1800 500 Load Push Capacity (N) 7500 5500 2700 1800 500 Self-Locking Capacity (N) 7500...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC12~19V
|
|||||
|
Speed (MM/S)
|
3.3 | 4.5 | 9 | 14 | 24 | |
|
Load Pull Capacity (N)
|
7500 | 5500 | 2700 | 1800 | 500 | |
|
Load Push Capacity (N)
|
7500 | 5500 | 2700 | 1800 | 500 | |
|
Self-Locking Capacity (N)
|
7500 | 5500 | 2700 | 1800 | 500 | |
|
Max Power
|
84W-96W | 60W | ||||
|
Initial Height(MM)
|
L=S+175/190
|
|||||
|
Operating Temperature
|
-10°C~+55°C
|
|||||
|
IP Grade
|
IP54
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Panels
|
Powder Coating
|
|||||
|

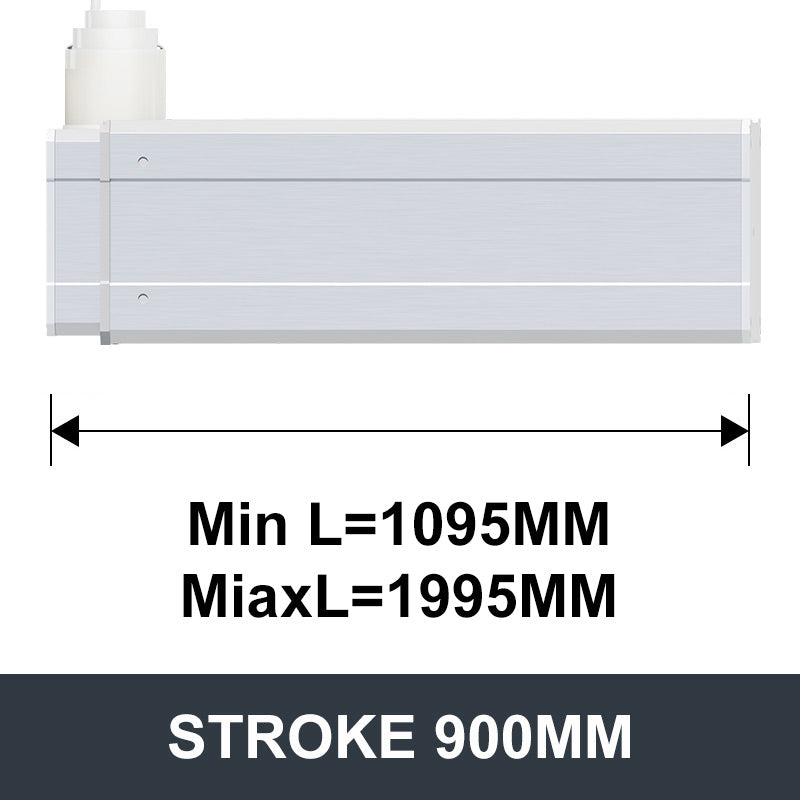

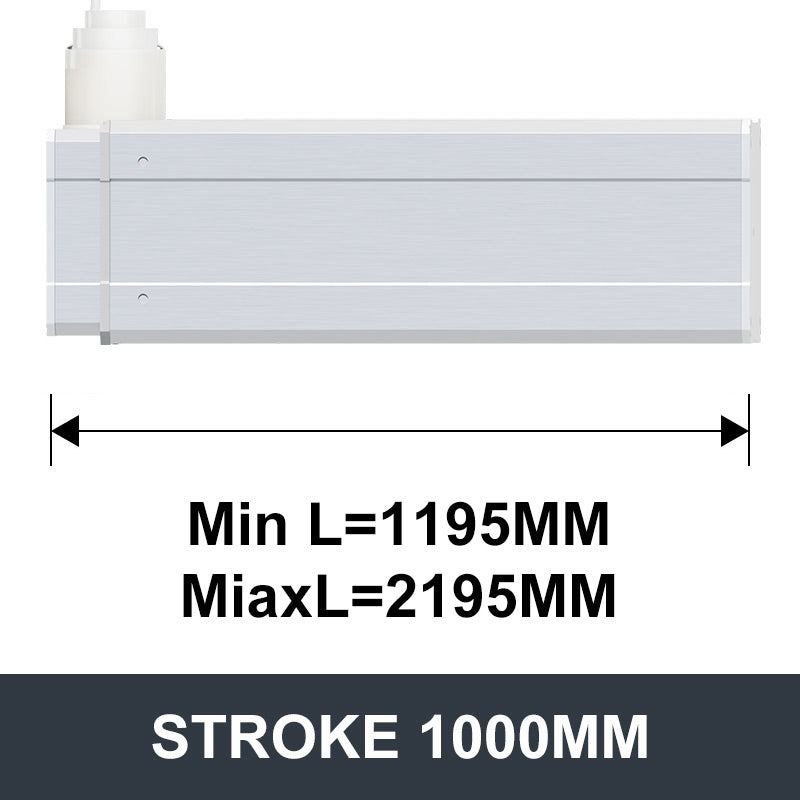

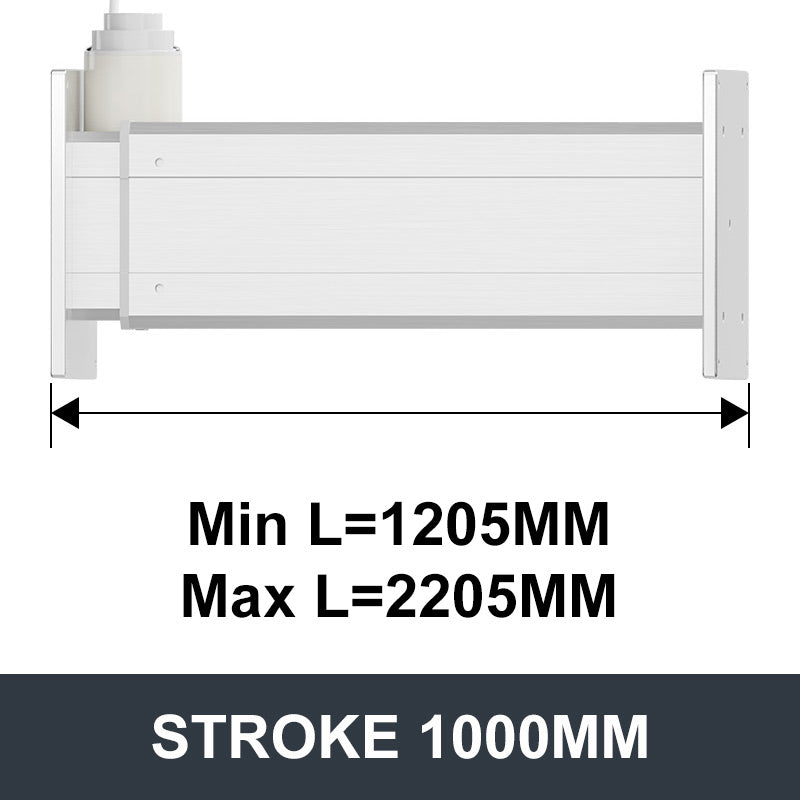

Stroke Length
|
50mm~1400mm
|
|||||
|
Optional Features
|
Rebound or Pause When Encountering Obstacles
Hall Sensor (Only 24V) Upper and Lower Limit Feedback |
|||||
OUTLINE DIMENSION DRAWING
