Electric Lifting Column 24V-32V DC Motor 2000N 440LB Load 1V4 - DHLC2000-Hall-HS1-1V4
$800.00
TECHNICAL PARAMETERS Model 500L 620P 870L 1170L 1470L Initial Height (MM) 660 560 730 860 1000 Final Height (MM) 1160 1180 1600 2030 2470 Stroke Length (MM) 500 620 870 1170 1470 Section 2 3 3 3 3 Input Voltage DC24V-DC32V Load Pull Capacity (N) Max 2000N Max 1600N 1S...
TECHNICAL PARAMETERS
|
Model
|
500L | 620P | 870L | 1170L | 1470L |
|
Initial Height (MM)
|
660 | 560 | 730 | 860 | 1000 |
|
Final Height (MM)
|
1160 | 1180 | 1600 | 2030 | 2470 |
|
Stroke Length (MM)
|
500 | 620 | 870 | 1170 | 1470 |
|
Section
|
2 | 3 | 3 | 3 | 3 |
|
Input Voltage
|
DC24V-DC32V | ||||
|
Load Pull Capacity (N)
|
Max 2000N | Max 1600N 1S / 2400N 2S / 3200N 4S | |||
|
Self-locking Capacity (N)
|
Max 2000N | Max 1600N 1S / 2400N 2S / 3200N 4S | |||
|
Noise
|
30dB
|
||||
|
Max Power
|
90W
|
||||
|
Max Speed
|
18MM/S
|
||||
|
Color
|
RAL9005(Black) / RAL7045(Gray) / RAL9016（White）
|
||||
|
Operating Temperature
|
-10°C~+60°C
|
||||
|
Optional Features
|
Hall Sensor
|
||||
|
Limit Switches
|
None
|
||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
||||
|
Install Screws
|
M6*16MM, If the Screw is too long, it will damage the motor.
|
||||
|
Rated Working Capacity
|
80% of Max Load, Unable to maintain Max load operation for a long time.
|
||||
|
Note
|
2 Columns lifting system and 4 Columns lifting system,
Any columns cannot exceed 200KG load and needs to be kept fixed. |
||||

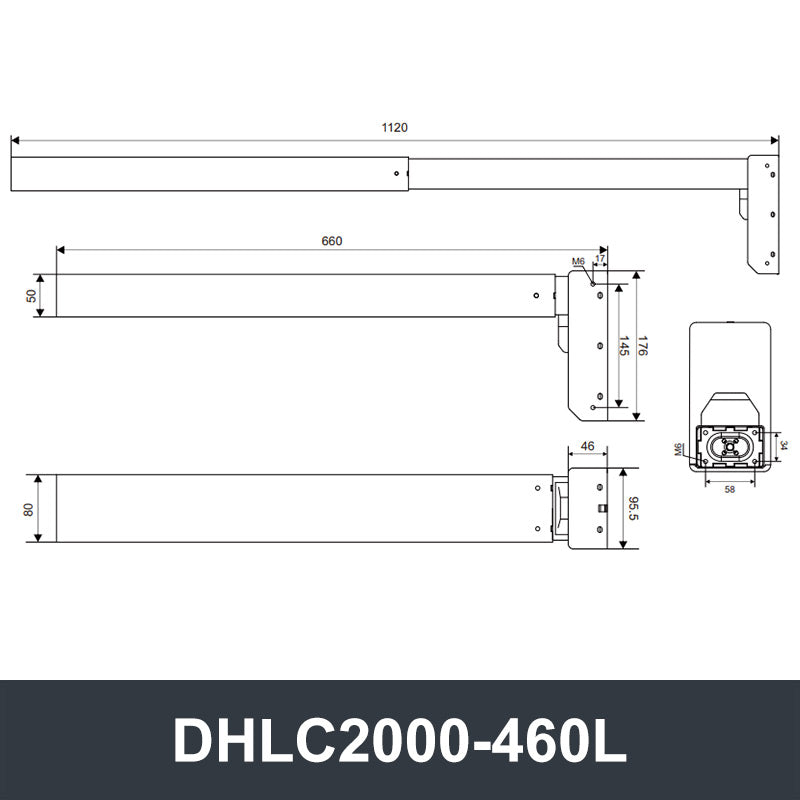

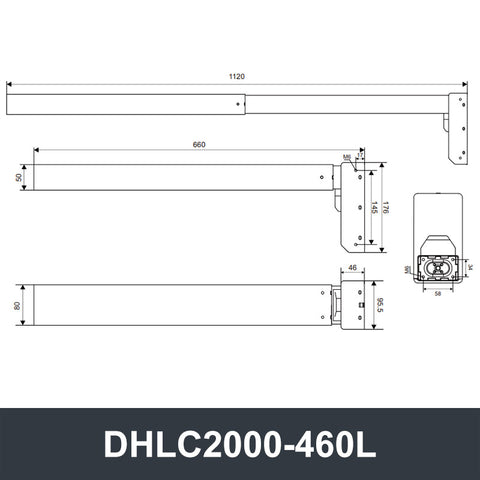

OUTLINE DIMENSION DRAWING
