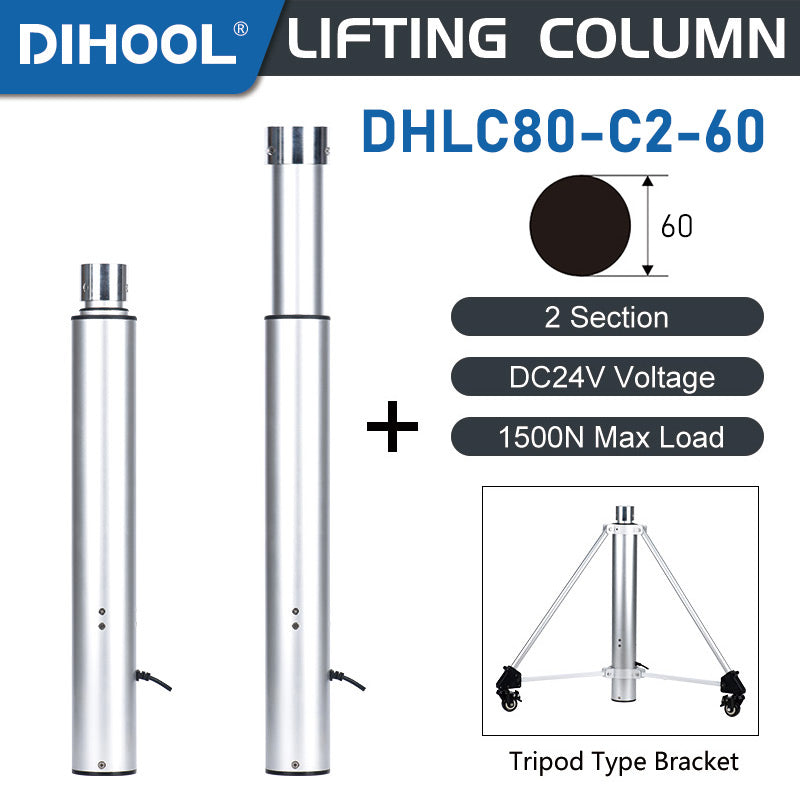

Electric Lifting Column 3 Sections 24V DC Motor 1500N 330LB Load - DHLC80-C3
$195.00
TECHNICAL PARAMETERS Model DHLC80-C2-80 DHLC80-C2-60 DHLC80-C3-80 DHLC80-C3-60 Section 2 2 3 3 Pipe Diameter (MM) 80/60 60/48 80/60/48 60/48/40 Stroke (MM) 200-800 200-800 400-2000 400-2000 Voltage DC24V Speed (MM/S) 13 17 36 Load Push Capacity (N) 1500 1000 600 Load Pull Capacity (N) 1500 1000 600 Current (A) 0.7 0.9...
TECHNICAL PARAMETERS
|
Model
|
DHLC80-C2-80 | DHLC80-C2-60 | DHLC80-C3-80 | DHLC80-C3-60 |
|
Section
|
2 | 2 | 3 | 3 |
|
Pipe Diameter (MM)
|
80/60 | 60/48 | 80/60/48 | 60/48/40 |
|
Stroke (MM)
|
200-800 | 200-800 | 400-2000 | 400-2000 |
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
13 | 17 | 36 | |||
|
Load Push Capacity (N)
|
1500 | 1000 | 600 | |||
|
Load Pull Capacity (N)
|
1500 | 1000 | 600 | |||
|
Current (A)
|
0.7 |
0.9 |
1.3 |
|||
|
Motor Speed
|
3000 | 4000 | 4500 | |||
|
Load Power
|
120W
|
|||||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
IP Grade
|
IP55
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver
|
|||||
|
Panels
|
Powder Coating
|
|||||

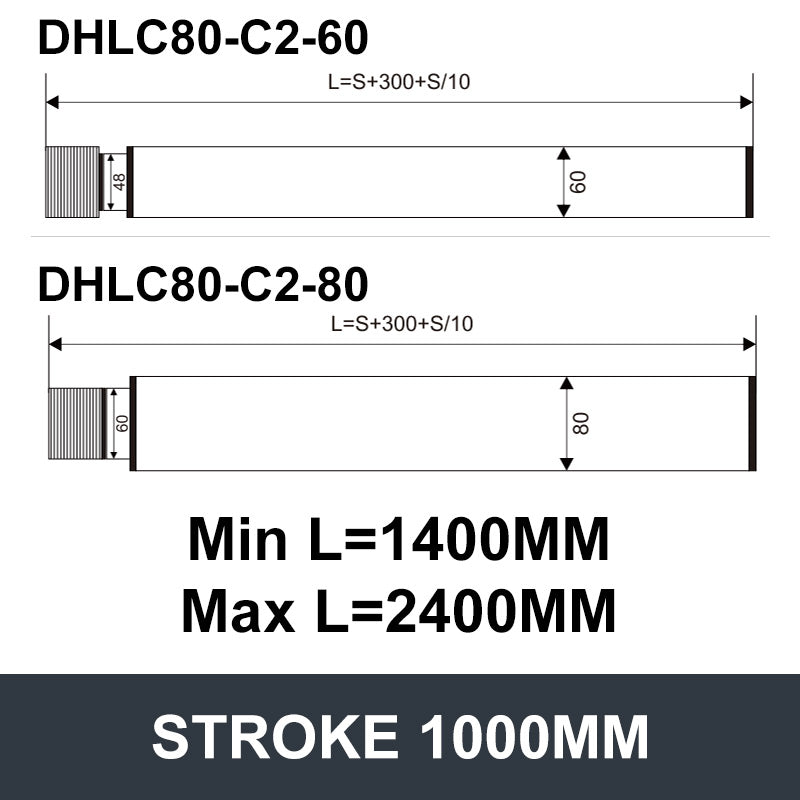

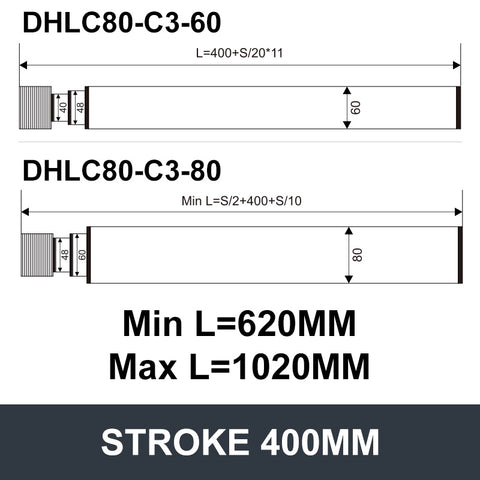

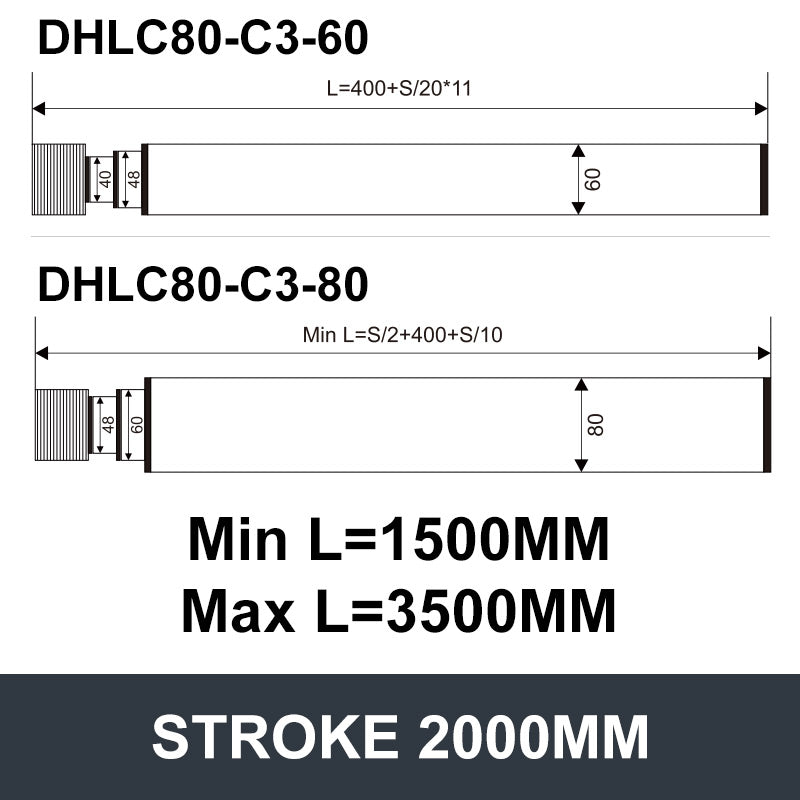

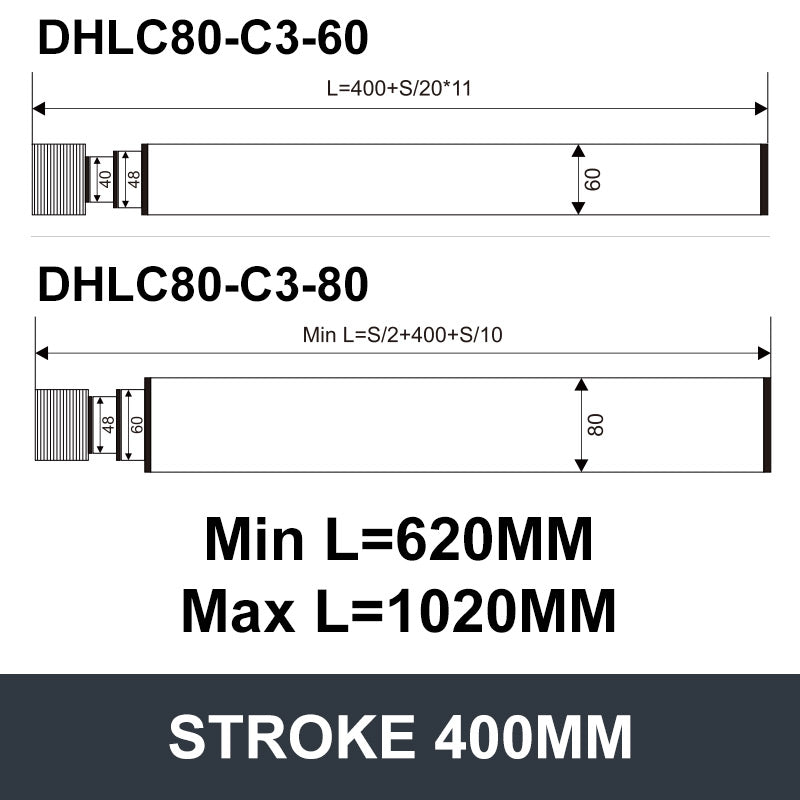

OUTLINE DIMENSION DRAWING
