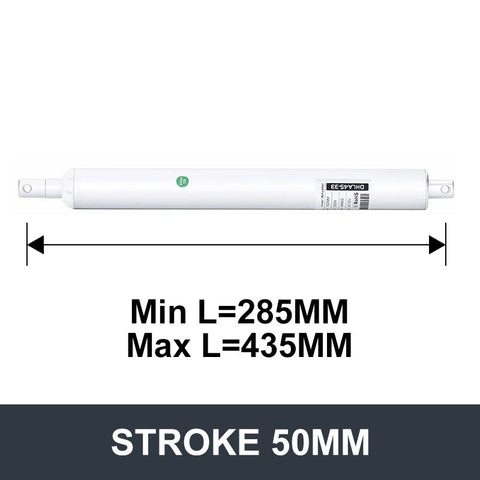

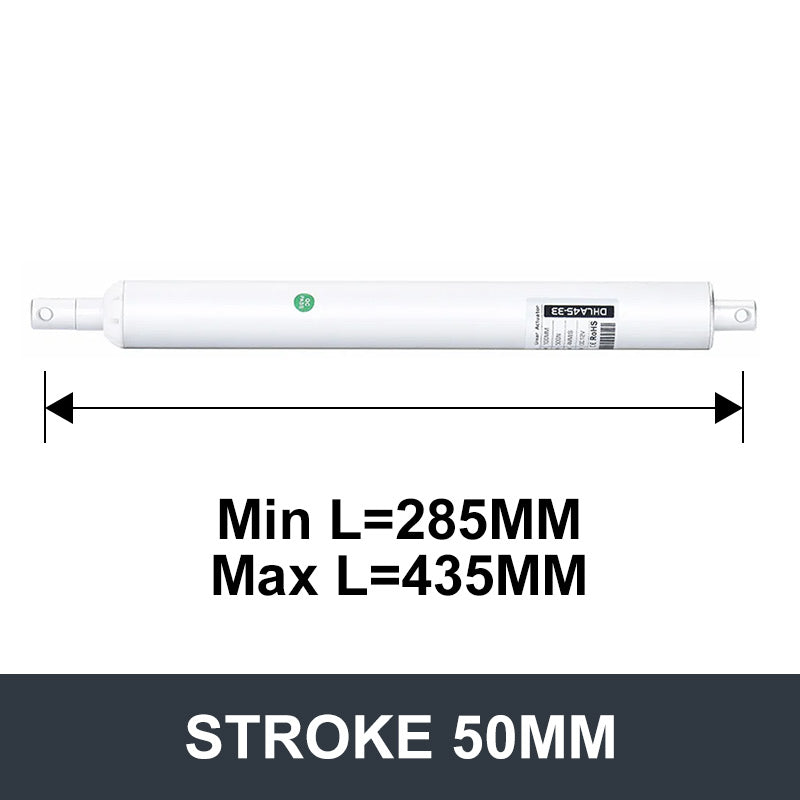

Electric Linear Motion Actuator 24V DC Motor 500N 110LB Load - DHLA45-33
$38.00
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Load Push(N) 500 400 300 200 No-Load Speed(MM/S) 4 8 12 25 Load Speed(MM/S) 3 6 9 20 No-Load Current (A) 0.15 0.15 0.17 0.2 Load Current (A) 0.4 0.5...
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||
|
Load Push(N)
|
500 | 400 | 300 | 200 |
|
No-Load Speed(MM/S)
|
4 | 8 | 12 | 25 |
|
Load Speed(MM/S)
|
3 | 6 | 9 | 20 |
|
No-Load Current (A)
|
0.15 | 0.15 | 0.17 | 0.2 |
|
Load Current (A)
|
0.4 | 0.5 | 0.6 | 0.7 |
|
Stroke Length
|
50mm-600mm
|
|||
|
Material
|
Aluminum
|
|||
|
Operating Temperature
|
-10°C~+60°C
|
|||
|
Limit Switches
|
Built-in
|
|||
|
IP Grade
|
IP65
|
|||
|
Noise
|
<35dB
|
|||
|
Operating Frequency
|
10% max 2min. continuous use
|
|||
|
Inner Tube
|
Aluminum tube
|
|||
|
Lead screw Type
|
Type T
|
|||
|
Mechanical Life
|
More than 50,000 times
|
|||
OUTLINE DIMENSION DRAWING
>
