Electric Linear Motion Actuator 12V DC Motor 500N 110LB Load - DHLA45-33

Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Load Push(N) 500 400 300 200 No-Load Speed(MM/S) 4 8 12 25 Load Speed(MM/S) 3 6 9 20 No-Load Current (A) 0.25 0.3 0.35 0.4 Load Current (A) 0.6 0.55...
STROKE
SPEED
-
+
$38.00

DIHOOL

50 In Stock

Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Load Push(N)
500 400 300 200
No-Load Speed(MM/S)
4 8 12 25
Load Speed(MM/S)
3 6 9 20
No-Load Current (A)
0.25 0.3 0.35 0.4
Load Current (A)
0.6 0.55 0.65 0.7

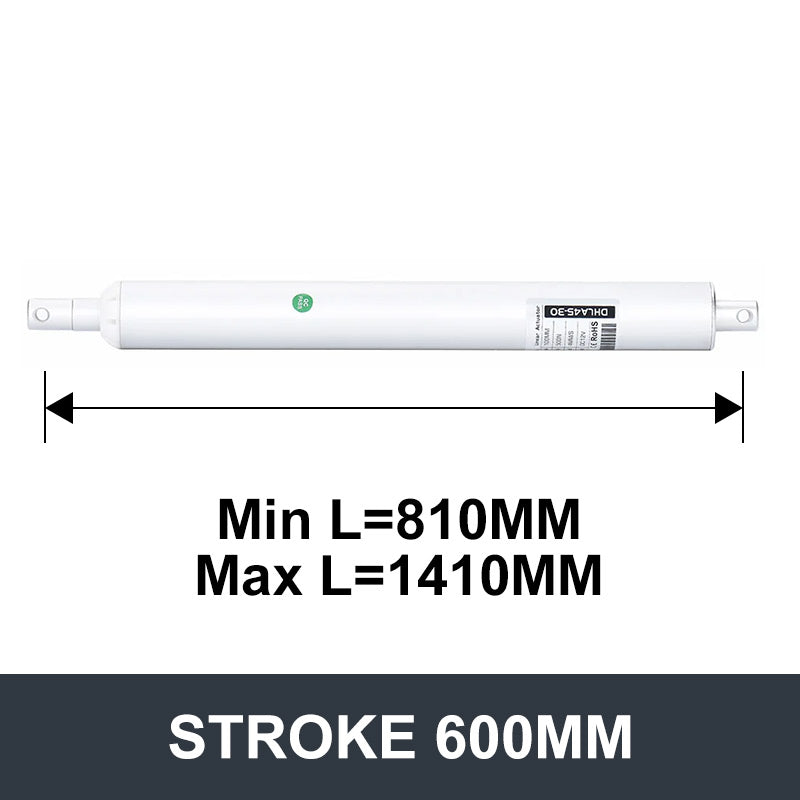

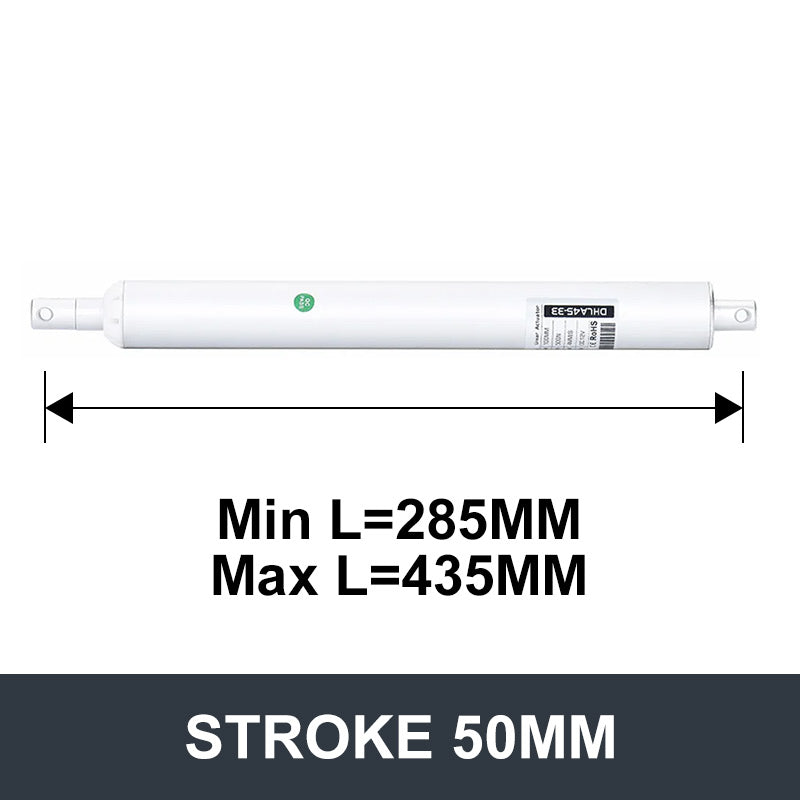

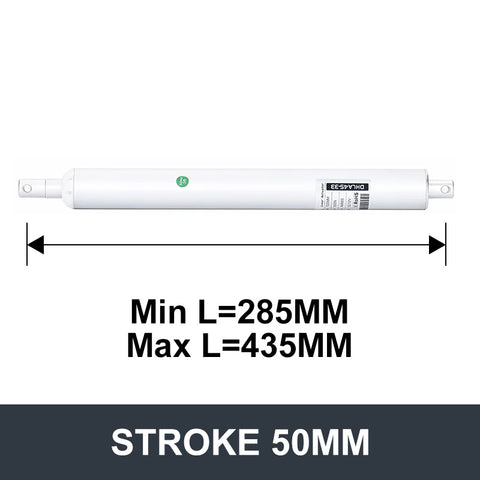

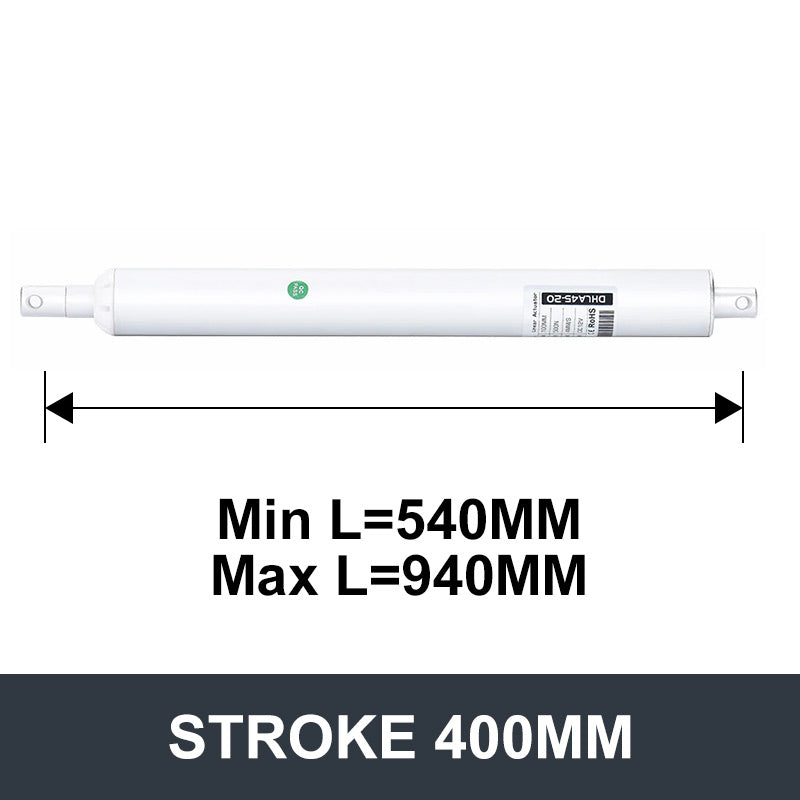

Stroke Length
50mm-600mm
Material
Aluminum
Operating Temperature
-10°C~+60°C
Limit Switches
Built-in
IP Grade
IP65
Noise
<35dB
Operating Frequency
10% max 2min. continuous use
Inner Tube
Aluminum tube
Lead screw Type
Type T
Mechanical Life
More than 50,000 times

OUTLINE DIMENSION DRAWING

>
