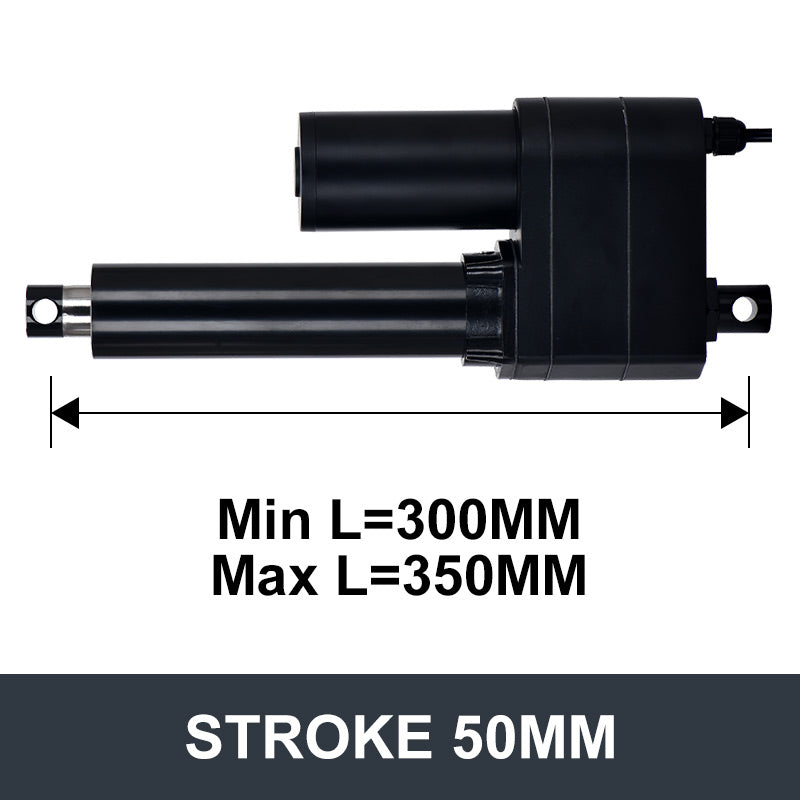

Electric Linear Motion Actuator 24V DC Motor 10000N 2200LB Load - DHLA10000-A1
$130.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 8 12 17 22 42 67 160 Load Pull Capacity(N) 10000 7000 6000 4000 3000 2500 1500 750 Load Push Capacity(N) 10000 7000 6000 4000 3000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||||
|
Speed (MM/S)
|
5 | 8 | 12 | 17 | 22 | 42 |
67 | 160 |
|
Load Pull Capacity(N)
|
10000 | 7000 | 6000 | 4000 | 3000 | 2500 | 1500 | 750 |
|
Load Push Capacity(N)
|
10000 | 7000 | 6000 | 4000 | 3000 | 2500 | 1500 | 750 |
|
Self-locking Capacity(N)
|
11000 | 10000 | 8000 | 5000 | 4000 | 2500 | 3000 | 2000 |
|
Stroke Length
|
50mm-2000mm
|
|||||||
|
Motor Power
|
240W
|
|||||||
|
Operating Temperature
|
-20°C~+65°C
|
|||||||
|
Limit Switches
|
Built-in
|
|||||||
|
Material
|
304 Stainless Steel and Aluminum
|
|||||||
|
Operating Frequency
|
10% continuous work for 2 minutes
|
|||||||
|
Protection Class
|
IP65
|
|||||||
|
Color
|
Black
|
|||||||
|
Mechanical Life
|
More than 30,000 times
|
|||||||
OUTLINE DIMENSION DRAWING
