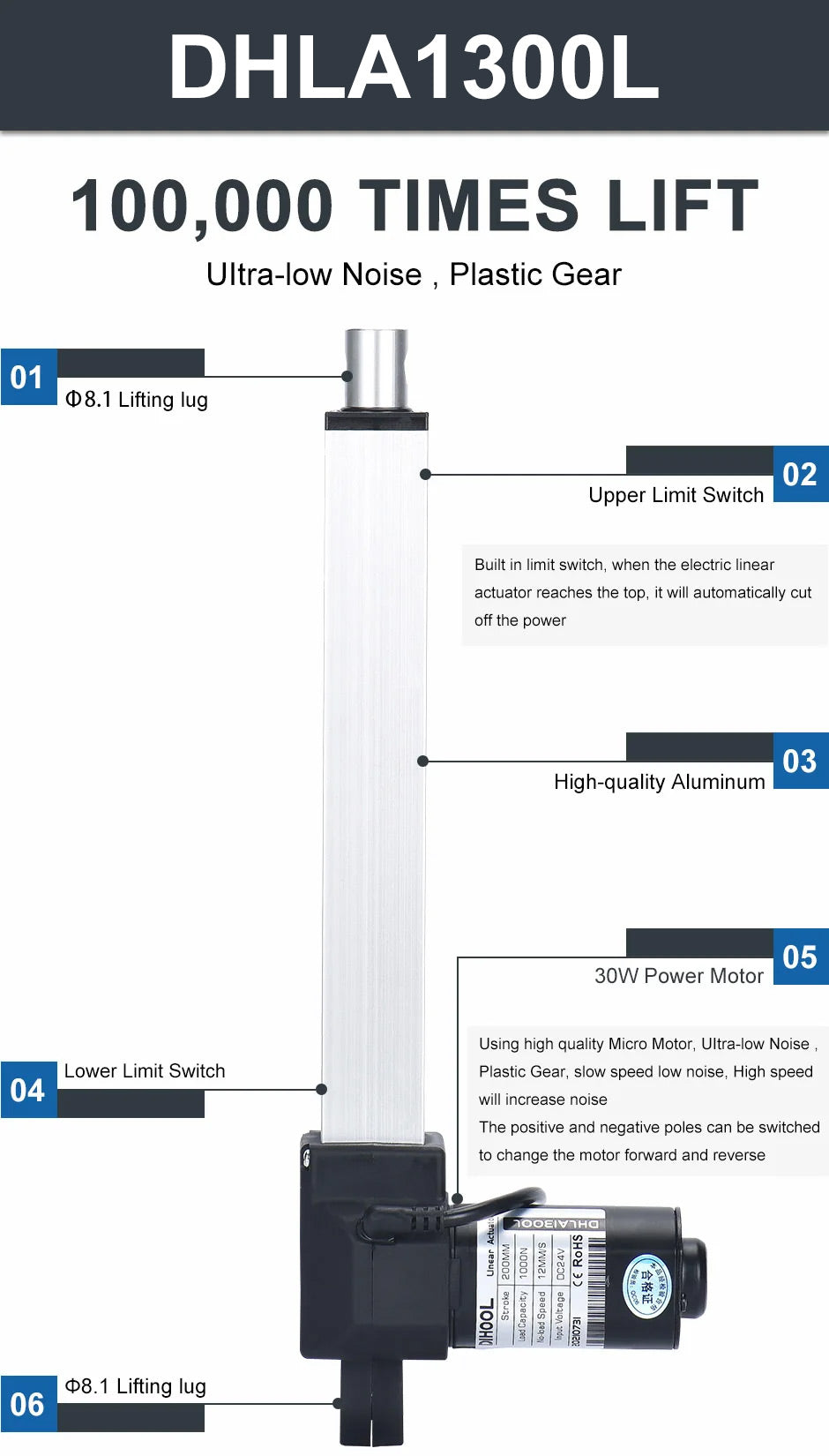

Electric Linear Motion Actuator 24V DC Motor 1500N 330LB Load - DHLA1300L
$16.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 12 25 40 52 Load Pull Capacity(N) 1500 1000 500 350 300 Load Push Capacity(N) 1500 1000 500 350 300 Self-locking Capacity(N) 1500 1000 500 350...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
||||
|
Speed (MM/S)
|
5 | 12 | 25 | 40 | 52 |
|
Load Pull Capacity(N)
|
1500 | 1000 | 500 | 350 | 300 |
|
Load Push Capacity(N)
|
1500 | 1000 | 500 | 350 | 300 |
|
Self-locking Capacity(N)
|
1500 | 1000 | 500 | 350 | 300 |
|

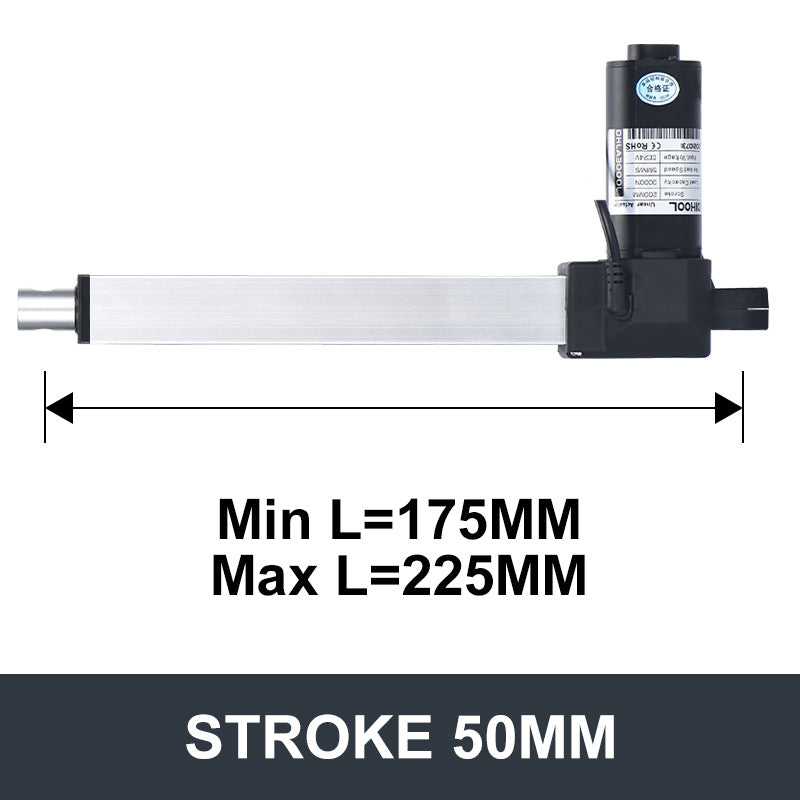

Stroke Length
|
30mm-1000mm
|
||||
|
Operating Temperature
|
-10°C~+45°C
|
||||
|
Limit Switches
|
Built-in
|
||||
|
Operating Frequency
|
10% max 2min. continuous use
|
||||
|
Inner Tube
|
Aluminum tube
|
||||
|
Lead screw Type
|
Type T
|
||||

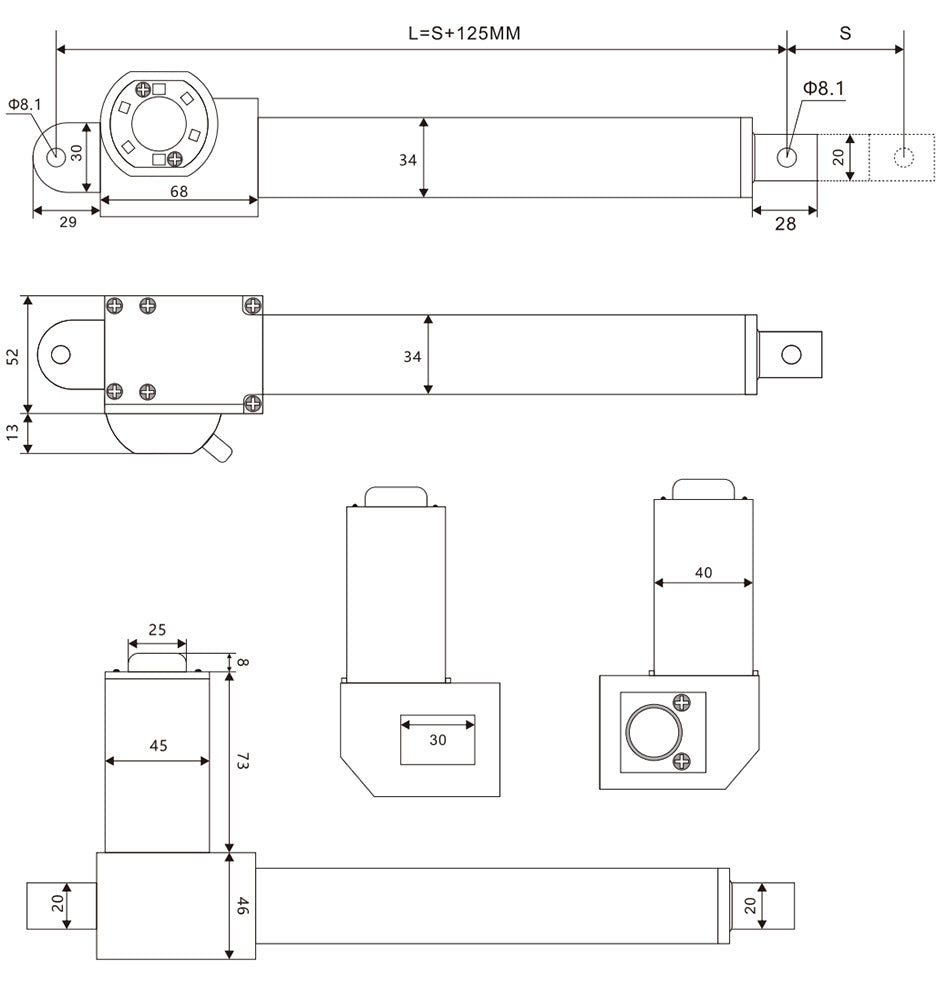

OUTLINE DIMENSION DRAWING
Optional Configuration
