Electric Linear Motion Actuator 24V DC Motor 2000N 440LB Load - DHLA2000-A2
$22.50
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 6 12 20 40 55 Load Pull Capacity(N) 2000 1500 1000 500 300 200 Load Push Capacity(N) 2000 1500 1000 500 300 200 Self-locking Capacity(N) 2000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
5 | 6 | 12 | 20 | 40 | 55 |
|
Load Pull Capacity(N)
|
2000 | 1500 | 1000 | 500 | 300 | 200 |
|
Load Push Capacity(N)
|
2000 | 1500 | 1000 | 500 | 300 | 200 |
|
Self-locking Capacity(N)
|
2000 | 1500 | 1000 | 500 | 300 | 200 |
|
Stroke Length
|
50mm-800mm
|
|||||
|
Motor Power
|
30W
|
|||||
|
Operating Temperature
|
0°C~+50°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
|||||
|
Lead Screw Type
|
Type T
|
|||||

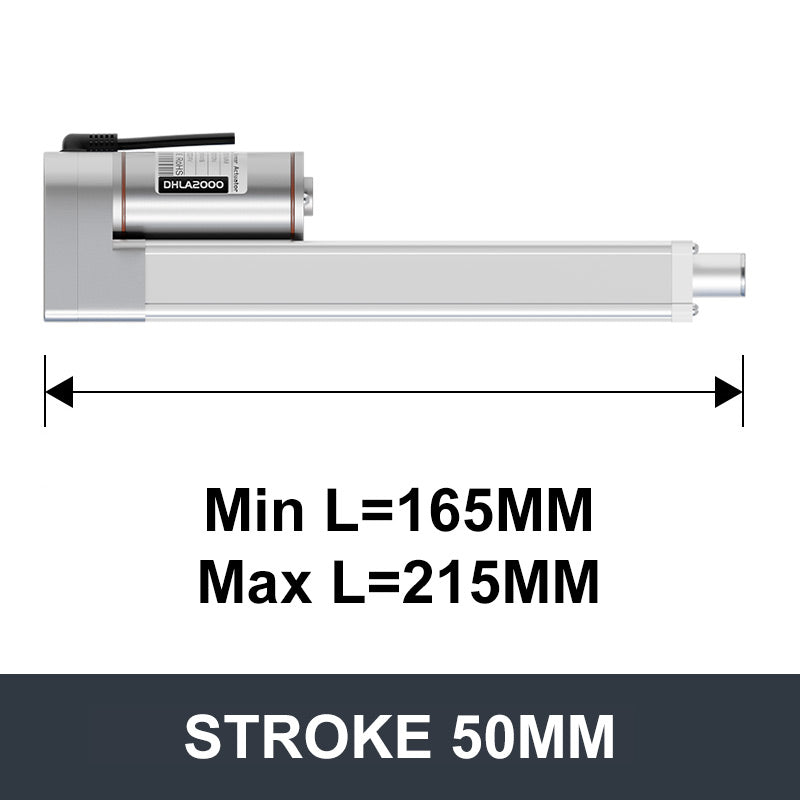

OUTLINE DIMENSION DRAWING
Optional Configuration
