Electric Linear Motion Actuator 24V DC Motor 4000N 880LB Load - DHLA4000
$30.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC20~32V Speed (MM/S) 5 10 16 Load Pull Capacity(N) 4000 2500 2000 Load Push Capacity(N) 4000 2500 2000 Self-locking Capacity(N) 6000 3000 2400 Stroke Length 50mm-1000mm (≥800mm stroke, Max load...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
Voltage | DC20~32V | |||||
Speed (MM/S) | 5 | 10 | 16 | |||
Load Pull Capacity(N) | 4000 | 2500 | 2000 | |||
Load Push Capacity(N) | 4000 | 2500 | 2000 | |||
Self-locking Capacity(N) | 6000 | 3000 | 2400 | |||

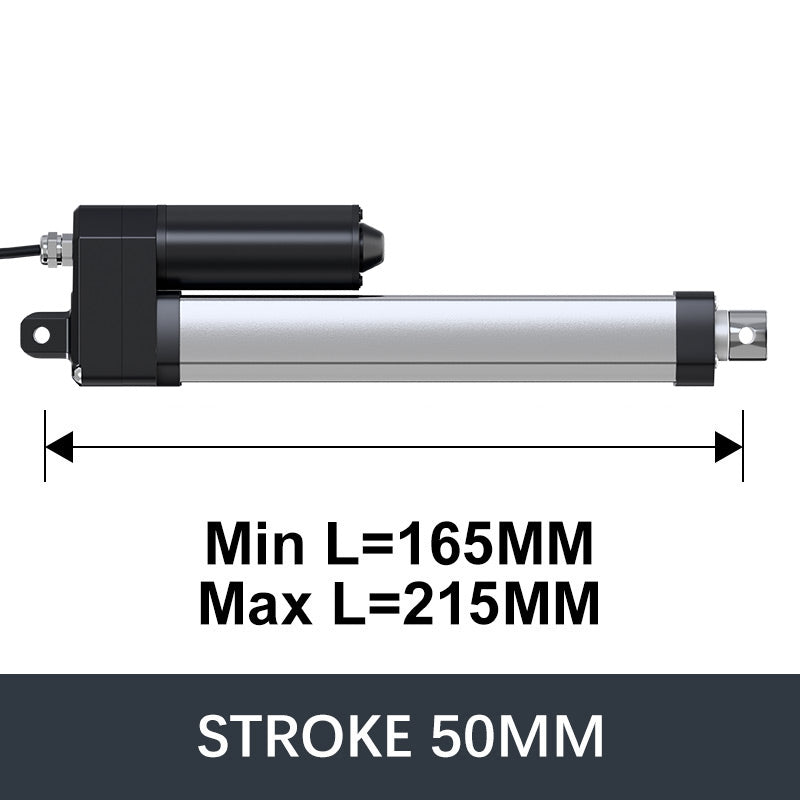

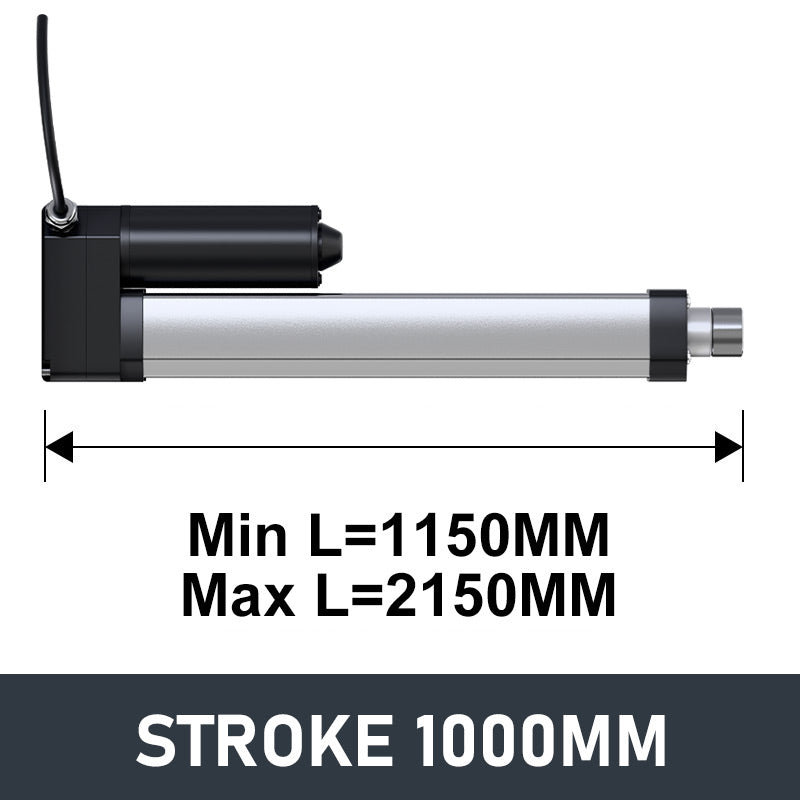

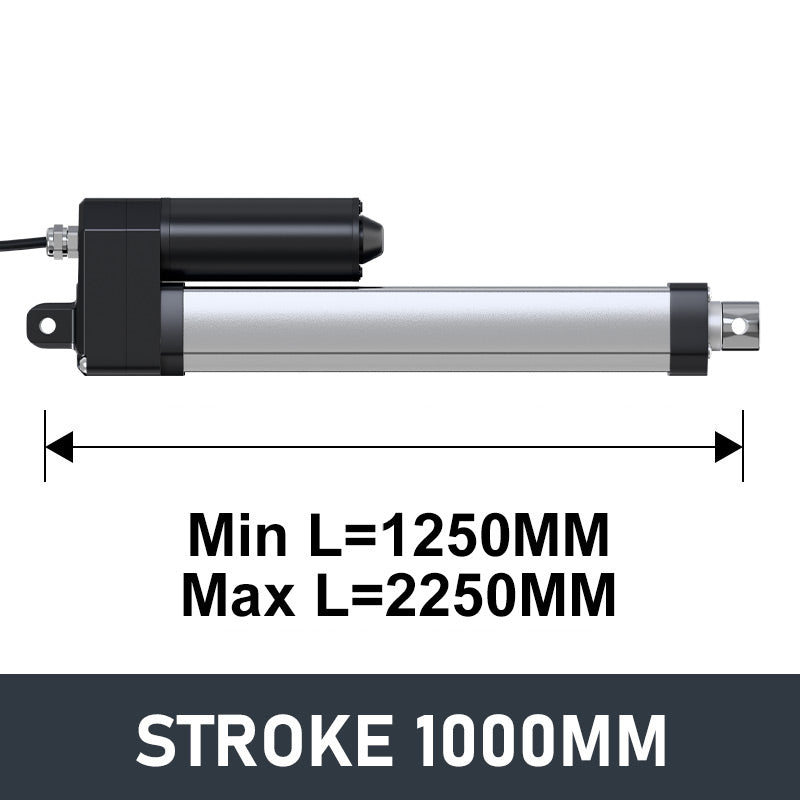

Stroke Length | 50mm-1000mm (≥800mm stroke, Max load 2000N) | |||||
Motor Power | 90W | |||||
Operating Temperature | 0°C~+40°C | |||||
Limit Switches | Built-in | |||||
IP Grade | IP65 (Default) | IP54 | IP66 | IP67 (IP65 is the default, other options are available. Please contact us to change it.) | |||||
Noise | 30dB | |||||
Operating Frequency | 10% max 10min. continuous use | |||||
Inner Tube | Aluminum tube | |||||
Lead screw Type | Type T | |||||
Mechanical Life | More than 20,000 times | |||||
Optional Configuration | ⚫ Hall Sensor ⚫ Magnetic Induction Switch ⚫ Upper and lower limit feedback |
OUTLINE DIMENSION DRAWING
Optional Configuration
