Electric Linear Motion Actuator 36V DC Motor 12000N 2640LB Load - DHLA12000-36V
$156.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC36V Speed (MM/S) 6.5 8.5 13 17 20 30 40 60 Load Pull Capacity(N) 12000 11000 10000 7000 6500 4000 3000 2000 Load Push Capacity(N) 12000 11000 10000 7000 6500...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC36V
|
|||||||
|
Speed (MM/S)
|
6.5 | 8.5 | 13 | 17 | 20 | 30 | 40 | 60 |
|
Load Pull Capacity(N)
|
12000 | 11000 | 10000 | 7000 | 6500 | 4000 | 3000 | 2000 |
|
Load Push Capacity(N)
|
12000 | 11000 | 10000 | 7000 | 6500 | 4000 | 3000 | 2000 |
|
Self-locking Capacity(N)
|
15000 | 12000 | 12000 | 8000 | 8000 | 5000 | 4000 | 3000 |
|

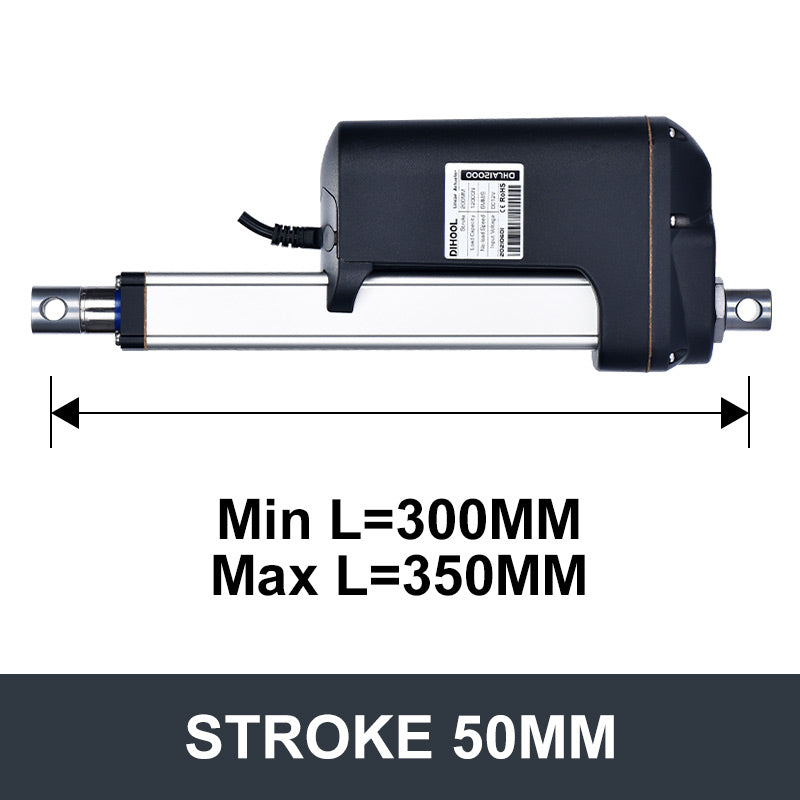

Stroke Length
|
50mm-2000mm
|
|||||||
|
Motor Power
|
240W
|
|||||||
|
Operating Temperature
|
-40°C~+65°C
|
|||||||
|
Limit Switches
|
Built-in
|
|||||||
|
Material
|
304 Stainless Steel and Aluminum
|
|||||||
|
Operating Frequency
|
10% continuous work for 2 minutes
|
|||||||
|
Protection Class
|
IP68
|
|||||||
|
Color
|
Black
|
|||||||
|
Lead Screw Type
|
Type T
|
|||||||
|
Mechanical Life
|
More than 30,000 times
|
|||||||
OUTLINE DIMENSION DRAWING
