Hall Electric Linear Motion Actuator 24V DC Motor 3000N 660LB Load - DHLA3000P-Hall-HS1-1V2
$160.00

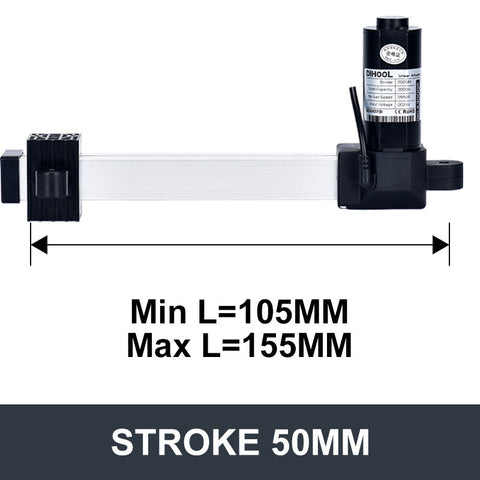

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 10 13 15 20 30 40 52 66 88 Load Pull Capacity(N) 3000 1500 1200 1000 800 600 400 300 250 150 Load Push Capacity(N) 3000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||||||
|
Speed (MM/S)
|
5 | 10 | 13 | 15 | 20 | 30 | 40 | 52 | 66 | 88 |
|
Load Pull Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 800 | 600 | 400 | 300 | 250 | 150 |
|
Load Push Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 800 | 600 | 400 | 300 | 250 | 150 |
|
Self-locking Capacity(N)
|
3500 | 1800 | 1500 | 1200 | 1000 | 800 | 600 | 400 | 300 | 200 |
|
Stroke Length
|
30mm-1000mm
|
|||||||||
|
Operating Temperature
|
-20°C~+65°C
|
|||||||||
|
Limit Switches
|
Built-in
|
|||||||||
|
Motor Power
|
60W
|
|||||||||
|
Operating Frequency
|
10% continuous work for 2 minutes
|
|||||||||
|
Inner Tube
|
Aluminum tube
|
|||||||||
|
Lead screw Type
|
Type T
|
|||||||||
|
Mechanical Life
|
More than 100,000 times
|
|||||||||
OUTLINE DIMENSION DRAWING
