Hall Electric Linear Motion Actuator 24V DC Motor 8000N 1760LB Load - DHLA8000-A1-Hall-HS1-1V1
$113.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 3.3 4.5 9 15 25 Load Pull Capacity(N) 8000 6000 3000 2000 800 Load Push Capacity(N) 8000 6000 3000 2000 800 Self-locking Capacity(N) 8000 6000 3000 2000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
3.3 | 4.5 | 9 | 15 | 25 | |
|
Load Pull Capacity(N)
|
8000 | 6000 | 3000 | 2000 | 800 | |
|
Load Push Capacity(N)
|
8000 | 6000 | 3000 | 2000 | 800 | |
|
Self-locking Capacity(N)
|
8000 | 6000 | 3000 | 2000 | 800 | |
|

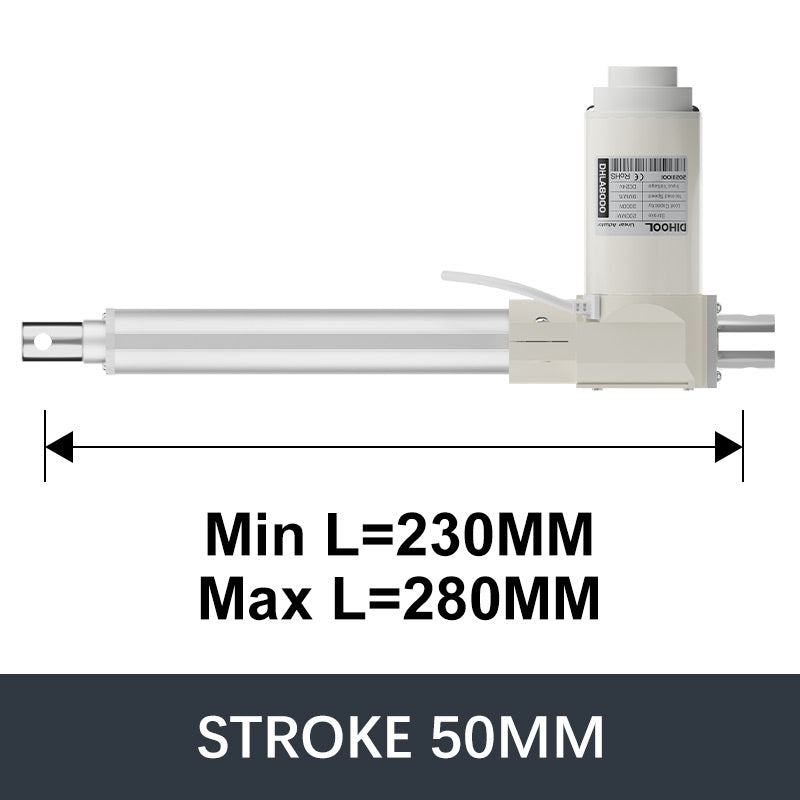

Stroke Length
|
50mm-1000mm
|
|||||
|
Motor Power
|
DC12V 96W | DC24V 84W
|
|||||
|
Operating Temperature
|
0°C~+40°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Material
|
Stainless steel tube and stainless steel tail
|
|||||
|
Noise
|
<30dB
|
|||||
|
Operating Frequency
|
10% max 2min. continuous use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead screw Type
|
Type T
|
|||||
|
Mechanical Life
|
More than 30,000 times
|
|||||
OUTLINE DIMENSION DRAWING
Optional Configuration
