Electric Lifting Column 24V-32V DC Motor 2000N 440LB Load 1V2 - DHLC2000-Hall-HS1-1V2
$400.00
TECHNICAL PARAMETERS Model 460L 600P 800L 1100L 1400L Initial Height (MM) 660 570 730 870 1000 Final Height (MM) 1120 1170 1530 1970 2400 Stroke Length (MM) 460 600 800 1100 1400 Section 2 3 3 3 3 Input Voltage DC24V-DC32V Load Capacity (N) Max 200KG Max 140KG 1S /...
TECHNICAL PARAMETERS
|
Model
|
460L | 600P | 800L | 1100L | 1400L |
|
Initial Height (MM)
|
660 | 570 | 730 | 870 | 1000 |
|
Final Height (MM)
|
1120 | 1170 | 1530 | 1970 | 2400 |
|
Stroke Length (MM)
|
460 | 600 | 800 | 1100 | 1400 |
|
Section
|
2 | 3 | 3 | 3 | 3 |
|
Input Voltage
|
DC24V-DC32V | ||||
|
Load Capacity (N)
|
Max 200KG | Max 140KG 1S / 200KG 2S / 300KG 4S | |||
|
Noise
|
30dB
|
||||
|
Max Power
|
90W
|
||||
|
Max Speed
|
18MM/S
|
||||
|
Color
|
RAL9005(Black) / RAL7045(Gray) / RAL9016（White）
|
||||
|
Operating Temperature
|
-10°C~+60°C
|
||||
|
Optional Features
|
Hall Sensor
|
||||
|
Limit Switches
|
None
|
||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
||||
|
Install Screws
|
M6*16MM, If the Screw is too long, it will damage the motor.
|
||||
|
Rated Working Capacity
|
80% of Max Load, Unable to maintain Max load operation for a long time.
|
||||
|
Note
|
2 Columns lifting system and 4 Columns lifting system,
Any columns cannot exceed 200KG load and needs to be kept fixed. |
||||

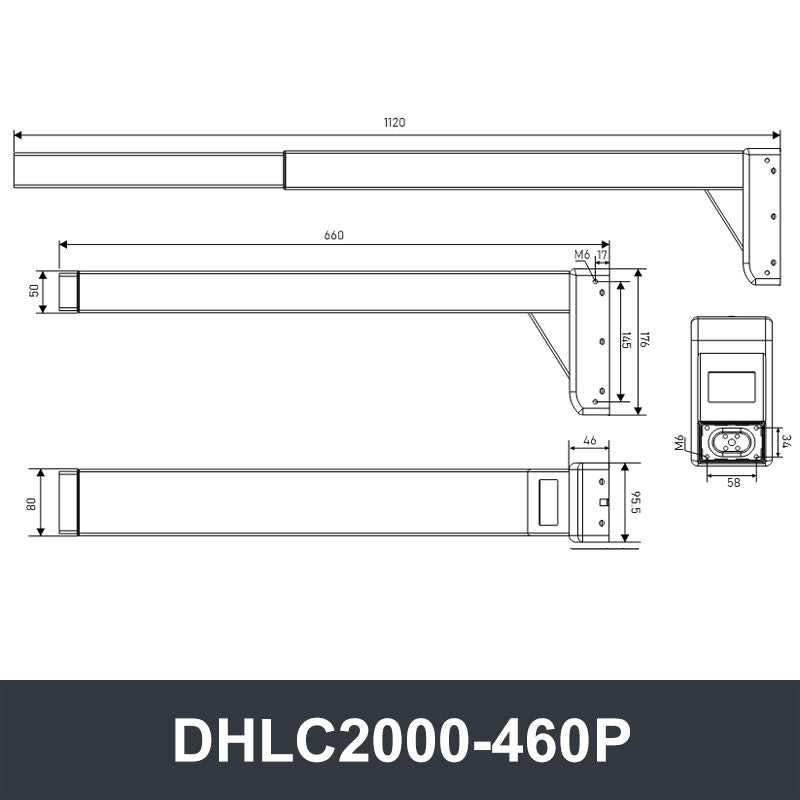

OUTLINE DIMENSION DRAWING
