Electric Linear Motion Actuator 12V DC Motor 800N 176LB Load - DHLA1300-A2
$18.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 10 20 30 40 66 Load Pull Capacity(N) 800 400 300 200 150 Load Push Capacity(N) 800 400 300 200 150 Self-locking Capacity(N) 800 400 300 200...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC12V | ||||
| Speed (MM/S) | 10 | 20 | 30 | 40 | 66 |
| Load Pull Capacity(N) | 800 | 400 | 300 | 200 | 150 |
| Load Push Capacity(N) | 800 | 400 | 300 | 200 | 150 |
| Self-locking Capacity(N) | 800 | 400 | 300 | 200 | 150 |

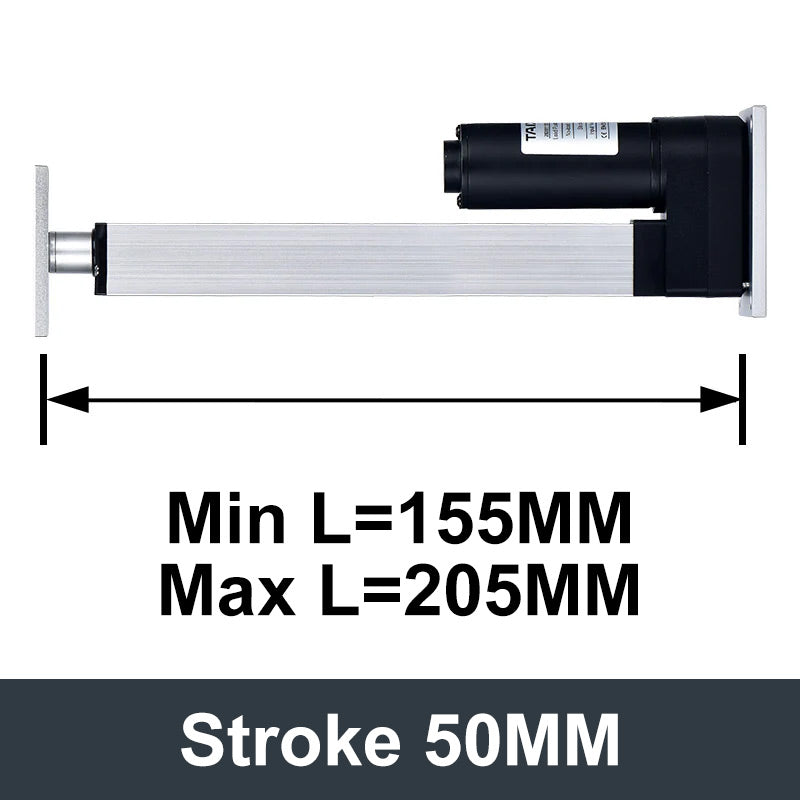

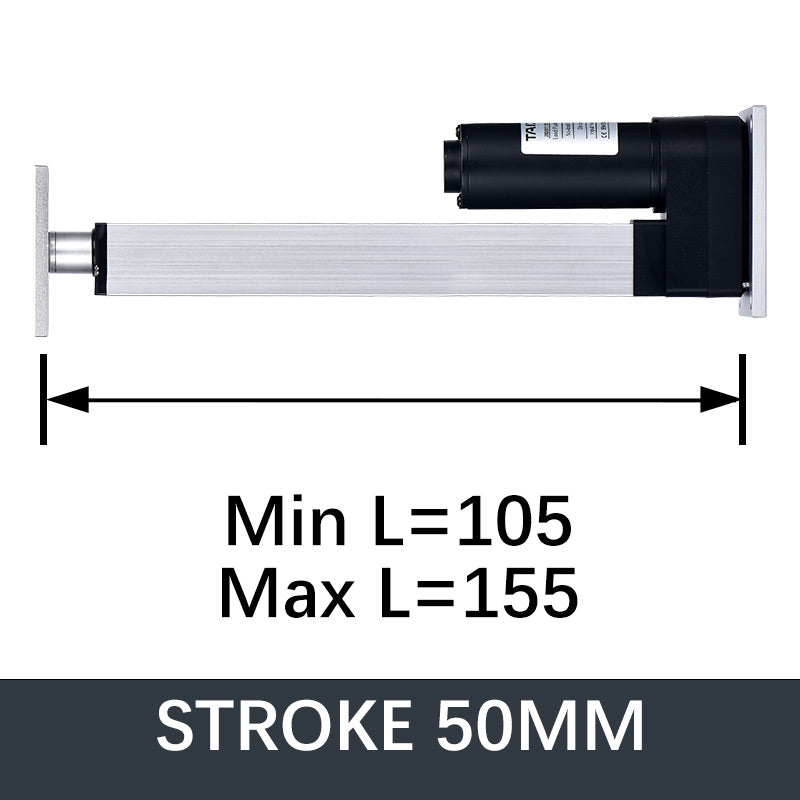

| Self-locking Capacity(N) | 50mm-1600mm | ||||
| Motor Power | 30W | ||||
| Operating Temperature | -10°C~+55°C | ||||
| Limit Switches | Built-in | ||||
| IP Grade | IP43 | ||||
| Material | Aluminum | ||||
| Noise | ＜30dB | ||||
| Operating Frequency | 10%max 2min. continuous use | ||||
| Inner Tube | Aluminum Tube | ||||
| Lead Screw Type | Type T | ||||
|
Mechanical Life
|
More than 50,000 times | ||||

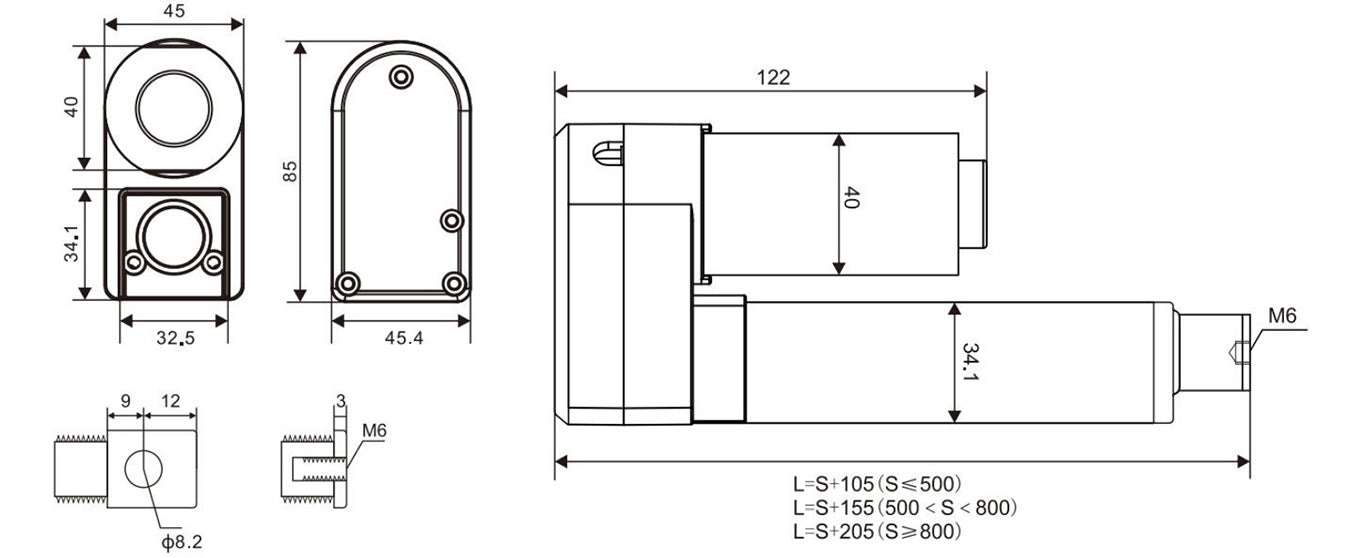

OUTLINE DIMENSION DRAWING
