DHLT1-D07A Elevating Lifting Table
$200.00
The DHLT1-D07A elevating table is designed with embedded table corner, which is tightly stitched for more stable support. The table bracket is cold-rolled steel column, which is strong and durable. The friction of articles will not damage the paint surface. Stable structure support, product is not easy to shake. TECHNICAL...
The DHLT1-D07A elevating table is designed with embedded table corner, which is tightly stitched for more stable support.
The table bracket is cold-rolled steel column, which is strong and durable. The friction of articles will not damage the paint surface. Stable structure support, product is not easy to shake.
TECHNICAL PARAMETERS
| Model | DHLT1-D07A |
| Voltage | AC100~240V |
| Height Adjustable Range | 770~1220MM |
| Length Adjustable Range | 1100MM |
| Width | 575MM |
| Number Of Motors | 1 |
| Section | 2 |
| Load Capacity | 800N | 80kg |
| Speed | 25MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Controller | Hall Controller | With APP Hall Controller |
| Customized | Table Leg | Hand Control | Color |
| Packaging | L1215mm *W635mm *H140mm |

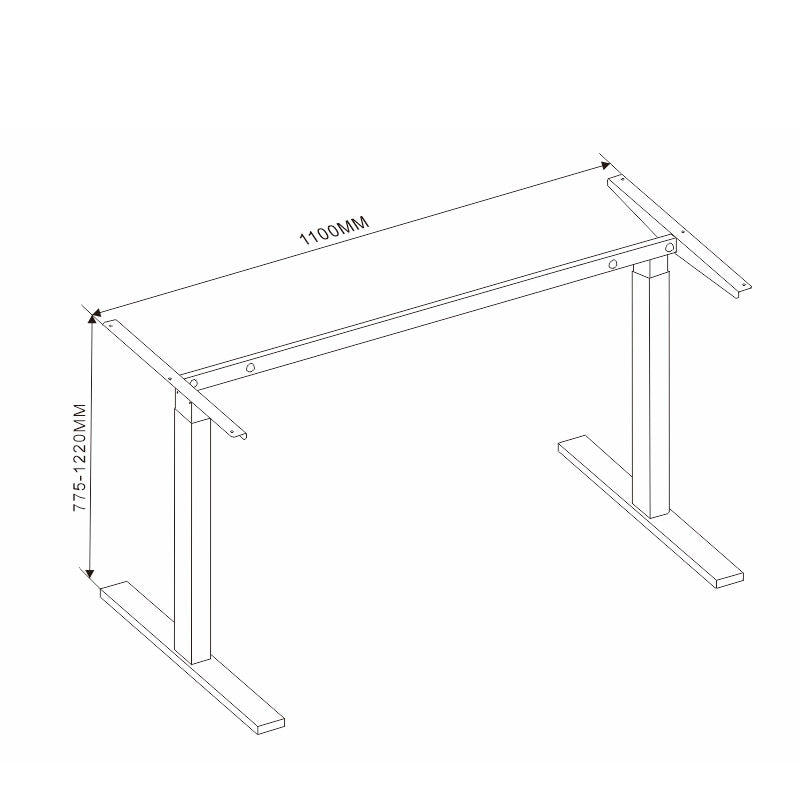

OUTLINE DIMENSION DRAWING
