DHLT1-H02 Hand-operated Lifting Table
$150.00
DHLT1-H02 lifting table is made of cold-rolled steel, which is durable and reliable. Bracket seamless connection, improve stability, the overall streamlined design, smooth and simple and beautiful. Users can adjust the height of the table according to your height, and you can sit or stand as you like. TECHNICAL PARAMETERS...
DHLT1-H02 lifting table is made of cold-rolled steel, which is durable and reliable. Bracket seamless connection, improve stability, the overall streamlined design, smooth and simple and beautiful. Users can adjust the height of the table according to your height, and you can sit or stand as you like.
TECHNICAL PARAMETERS
| Model | DHLT1-H02 |
| Voltage | AC100~240V |
| Table Board Size | W1600 X D800 |
| Height Adjustable Range | 700~1200MM |
| Length Adjustable Range | 1090-1450MM |
| Width | 575MM |
| Number Of Motors | 1 |
| Section | 2 |
| Load Capacity | 600N | 60kg |
| Speed | 6MM/Circle |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Customized | Table Leg | Hand Control | Color |
| Packaging | L1215mm *W635mm *H140mm |

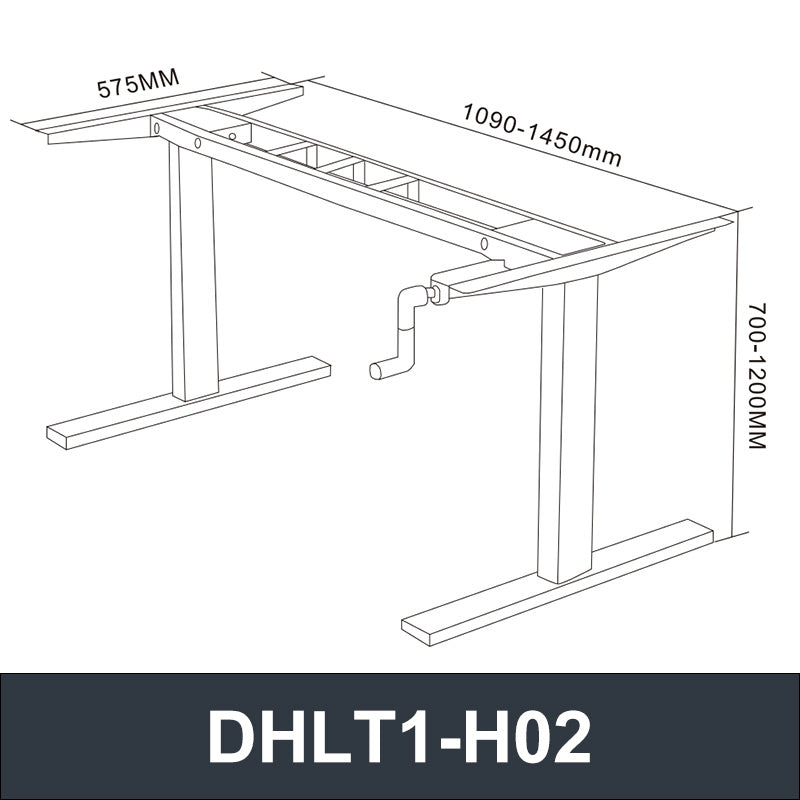

OUTLINE DIMENSION DRAWING
