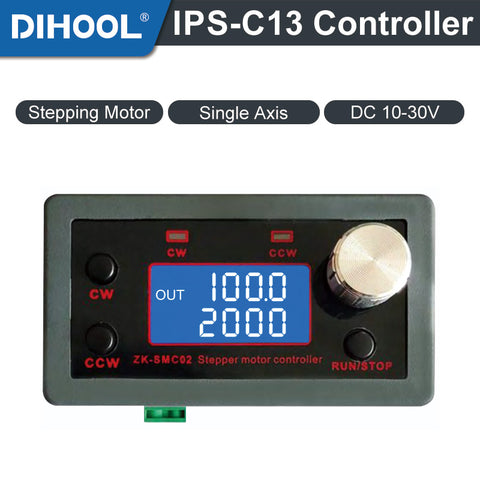

IPS-C13 STEPPER MOTOR CONTROLLER
$40.00
PRODUCT DESCRIPTION This is a special operation control module for single shaft stepping motor. A variety of fixed operation modes are built in the module, and users can quickly select the appropriate motion track. The distance/ speed /delay/ number of cycles can be saved and set after power down. It...
PRODUCT DESCRIPTION
This is a special operation control module for single shaft stepping motor. A variety of fixed operation modes are built in the module, and users can quickly select the appropriate motion track. The distance/ speed /delay/ number of cycles can be saved and set after power down. It can run independently as a module, or it can be used together with other systems. It can be used in general industrial control occasions, not in special industries such as medical treatment and fire protection or life-threatening fields.TECHNICAL PARAMETERS
| Model | IPS-C13 |
| Adaptive motor | Stepping Motor |
| Number Of Control Axes | Single Axis |
| Motor Signal | Common Cathode |
| Power Supply Range | DC 10-30V General |
| Driving Capacity | 4A |
| Instruction Features | Streamline and optimize multiple common instructions |
| Acceleration and deceleration control | Yes |
| Input reverse connection protection | Yes |
| Remote communication control | TTL Serial Port |
| Main Functions Of The System | Automatic, Manual, Setting And Serial Port Control |
| Speed Range | 0.1-999 laps/ min |
| Number Of Forward Rotation Pulses | 1-9999999 pulses |
| Number Of Reverse Pulses | 1-9999999 pulses |
| Number Of Cycles | 1-9999 |
| Forward Rotation Delay Time | 0.0-999.9 seconds |
| Reverse Delay Time | 0.0-999.9 seconds |
| Subdivision Selection Range | 1-128 subdivision |
| Product Service Environment | -50℃~+60℃ (no condensation) |
DIMENSIONS
INTERFACE FUNCTION INTRODUCTION AND OPERATION METHOD
