12v Motor Controller Mini Electric Linear Actuator Door Lock Window Opener Flat Plate 50mm 100mm 800mm 900mm 2400N Limit Switch
$46.90
TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 5 10 20 30 40 66 Load Pull Capacity(N) 2400 1200 600 400 300 200 Load Push Capacity(N) 2400 1200 600 400 300 200 Self-locking Capacity(N) 2400 1200 600 400 300 200 Stroke Length 30mm-1600m Operating Temperature -25°C~+85°C Limit Switches Built-in Operating Frequency 10%...
TECHNICAL PARAMETERS
|
Voltage
|
DC12V | ||||||||||
|
Speed (MM/S)
|
5 | 10 | 20 | 30 | 40 | 66 | |||||
|
Load Pull Capacity(N)
|
2400 | 1200 | 600 | 400 | 300 | 200 | |||||
| Load Push Capacity(N) | 2400 | 1200 | 600 | 400 | 300 | 200 | |||||
| Self-locking Capacity(N) | 2400 | 1200 | 600 | 400 | 300 | 200 | |||||
|
Stroke Length
|
30mm-1600m
|
||||||||||
|
Operating Temperature
|
-25°C~+85°C
|
||||||||||
|
Limit Switches
|
Built-in
|
||||||||||
|
Operating Frequency
|
10% max 2min continuous use
|
||||||||||
|
Inner Tube
|
Aluminum tube
|
||||||||||
|
Lead screw Type
|
Type T
|
||||||||||
|
Installation Method
|
M6/M8/M10 Screw
|
Flat Plate
|
Ф6.2 / Ф8.2 / Ф10.2 Lifting Lug
|
||||||||

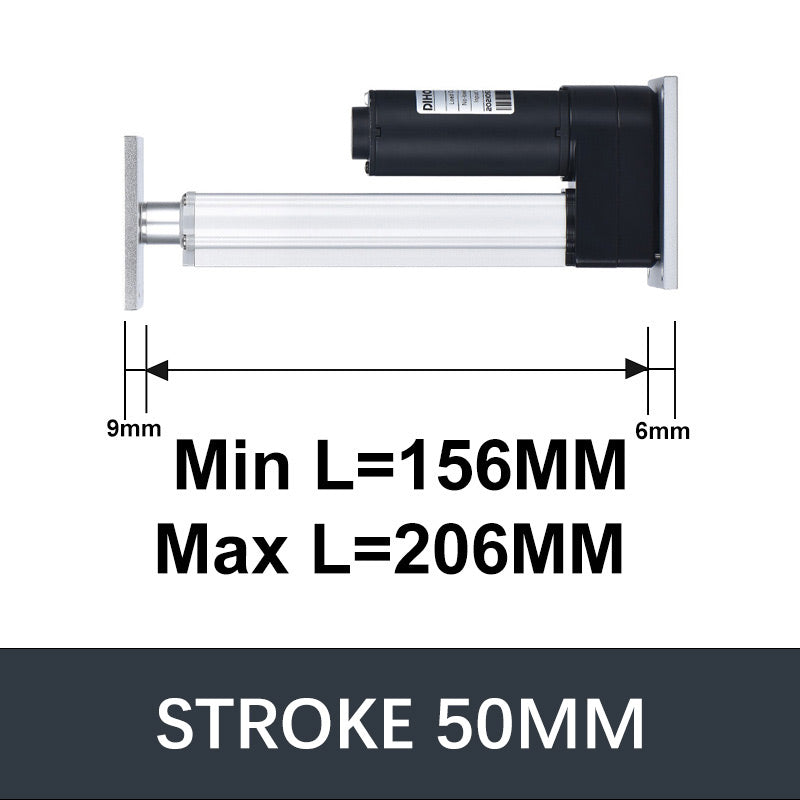

OUTLINE DIMENSION DRAWING
Optional Configuration
