DC 24V 60W 3000N 2500N Motor Electric Linear Actuator 50mm 150mm 250mm 350mm 500mm Stroke 300KG Load Customized Telescopic Rod
$47.71
Voltage DC24V Speed (MM/S) 5 10 15 20 26 30 40 50 66 88 110 Load Pull Capacity(N) 3000 1500 1200 1000 800 600 400 400 300 200 100 Load Push Capacity(N) 3000 1500 1200 1000 500 600 400 400 300 200 100 Self-locking Capacity(N) 4000 2000 1500 1200 1000...
|
Voltage
|
DC24V
|
||||||||||
|
Speed (MM/S)
|
5 | 10 | 15 | 20 | 26 | 30 | 40 | 50 | 66 | 88 | 110 |
|
Load Pull Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 800 | 600 | 400 | 400 | 300 | 200 | 100 |
|
Load Push Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 500 | 600 | 400 | 400 | 300 | 200 | 100 |
|
Self-locking Capacity(N)
|
4000 | 2000 | 1500 | 1200 | 1000 | 800 | 600 | 500 | 400 | 200 | 100 |
|

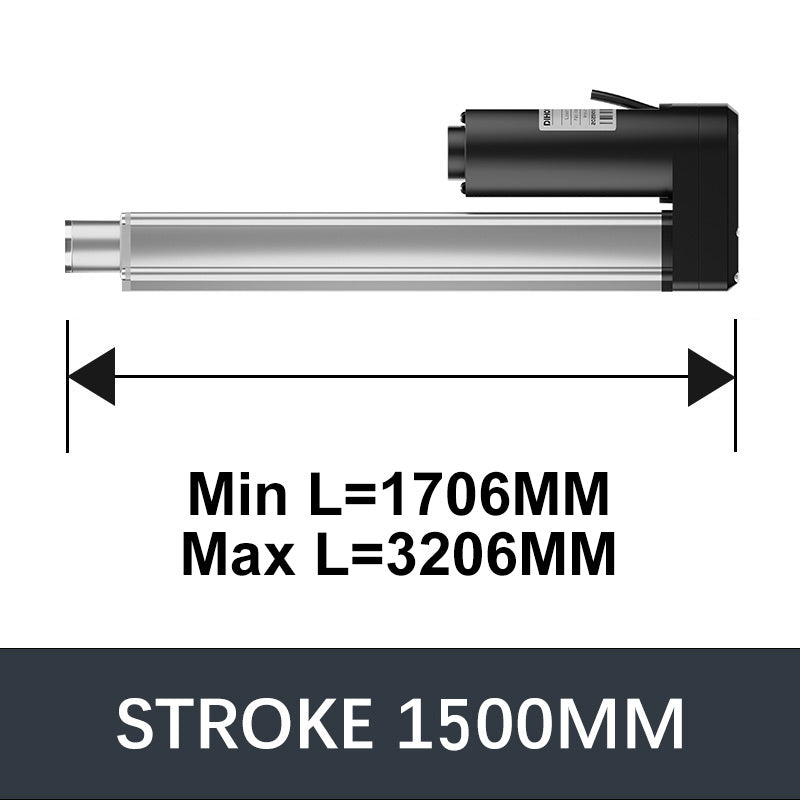

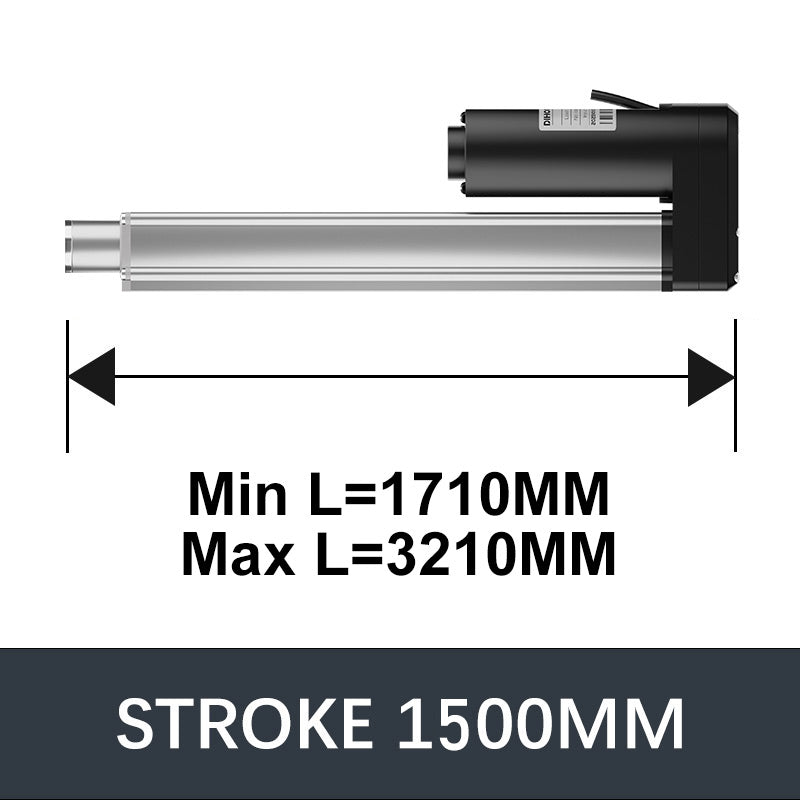

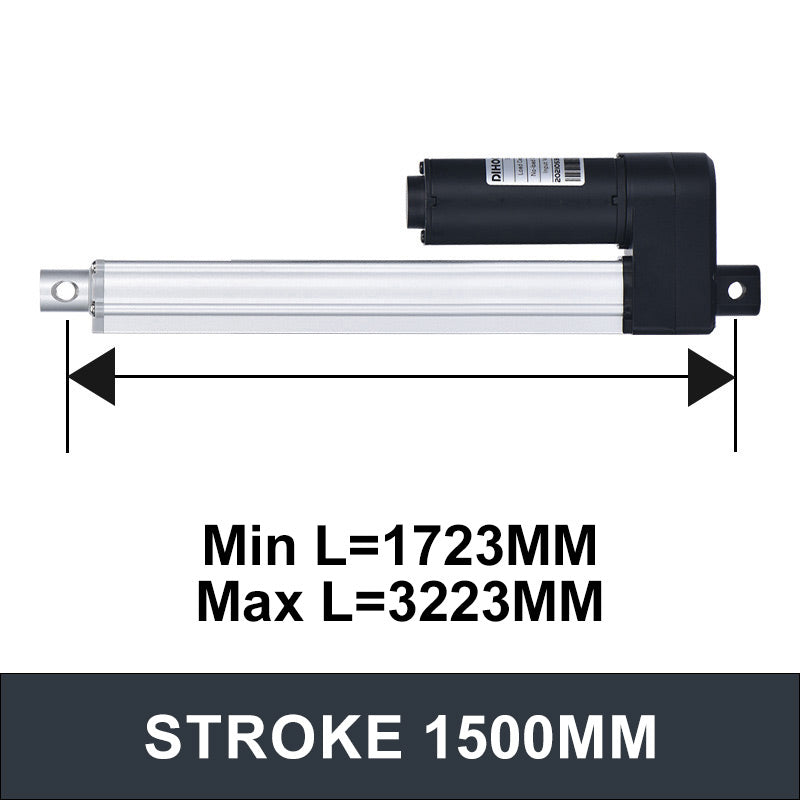

Stroke Length
|
30mm-1600m
|
||||||||||
|
Operating Temperature
|
-25°C~+85°C
|
||||||||||
|
Limit Switches
|
Built-in
|
||||||||||
|
Operating Frequency
|
10% max 2min continuous use
|
||||||||||
|
Inner Tube
|
Aluminum tube
|
||||||||||
|
Lead screw Type
|
Type T
|
||||||||||
|
Installation Method
|
M6/M8/M10 Screw
|
Flat Plate
|
Ф6.2 / Ф8.2 / Ф10.2 Lifting Lug
|
||||||||

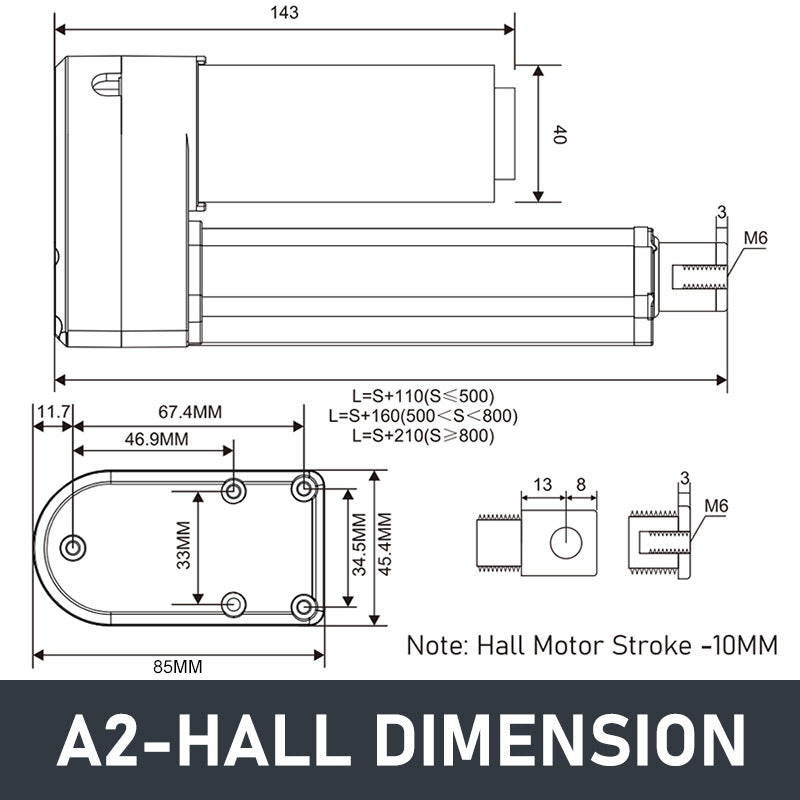

OUTLINE DIMENSION DRAWING
OUTLINE DIMENSION DRAWING
