DHLA3000 A1 Type Hall Electric Linear Actuator
$57.40
TECHNICAL PARAMETERS Voltage DC29V-32V Speed (MM/S) 5 10 15 20 40 66 Load Pull Capacity(N) 3000 1500 1200 1000 400 300 Load Push Capacity(N) 3000 1500 1200 1000 400 300 Self-locking Capacity(N) 4000 2000 1500 1200 600 400 Stroke Length 30mm-1600m Operating Temperature -25°C~+85°C Limit Switches Built-in Operating Frequency 10%...
TECHNICAL PARAMETERS
|
Voltage
|
DC29V-32V
|
|||||
|
Speed (MM/S)
|
5 | 10 | 15 | 20 | 40 | 66 |
|
Load Pull Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 400 | 300 |
|
Load Push Capacity(N)
|
3000 | 1500 | 1200 | 1000 | 400 | 300 |
|
Self-locking Capacity(N)
|
4000 | 2000 | 1500 | 1200 | 600 | 400 |
|

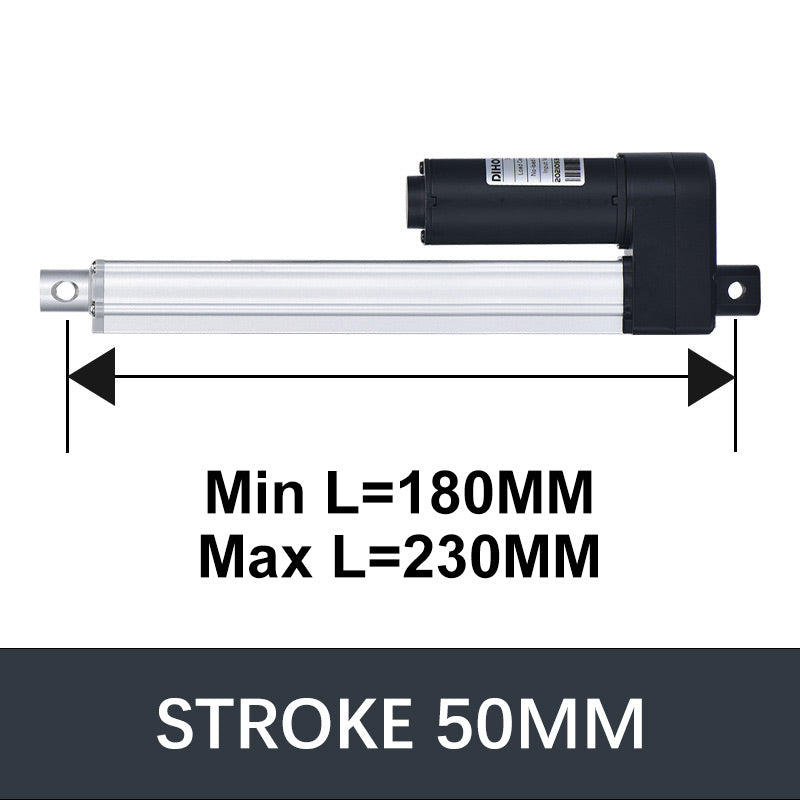

Stroke Length
|
30mm-1600m
|
|||||
|
Operating Temperature
|
-25°C~+85°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% max 2min continuous use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead screw Type
|
Type T
|
|||||
|
Installation Method
|
M6/M8/M10 Screw
|
Flat Plate
|
Ф6.2 / Ф8.2 / Ф10.2 Lifting Lug
|
|||
OUTLINE DIMENSION DRAWING
Optional Configuration
