Electric Linear Motion Actuator 24V DC Motor 180N 51LB Load - DHLA130-A1
$16.00
TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 3.5 7 10 14 28 50 150 Load Pull Capacity(N) 180 120 100 80 40 18 8 Load Push Capacity(N) 180 120 100 80 40 18 8 Self-locking Capacity(N) 150 70 60 50 20 10 6 Stroke Length 10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm Motor Power 5W Operating Temperature...
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
||||||
|
Speed (MM/S)
|
3.5 | 7 | 10 | 14 | 28 | 50 | 150 |
|
Load Pull Capacity(N)
|
180 | 120 | 100 | 80 | 40 | 18 | 8 |
|
Load Push Capacity(N)
|
180 | 120 | 100 | 80 | 40 | 18 | 8 |
|
Self-locking Capacity(N)
|
150 | 70 | 60 | 50 | 20 | 10 | 6 |
|
Stroke Length
|
10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm
|
||||||
|
Motor Power
|
5W
|
||||||
|
Operating Temperature
|
-10°C~+50°C
|
||||||
|
Limit Switches
|
Built-in
|
||||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
||||||
|
Color
|
Black
|
||||||
|
Inner Tube
|
Aluminum tube
|
||||||
|
Material
|
Aluminum
|
||||||
|
Protection Class
|
IP43
|
||||||
|
Noise
|
Below 55dB
|
||||||
|
Mechanical Life
|
More than 10,000 times
|
||||||
|
Note
|
Customized DC6V
|
||||||

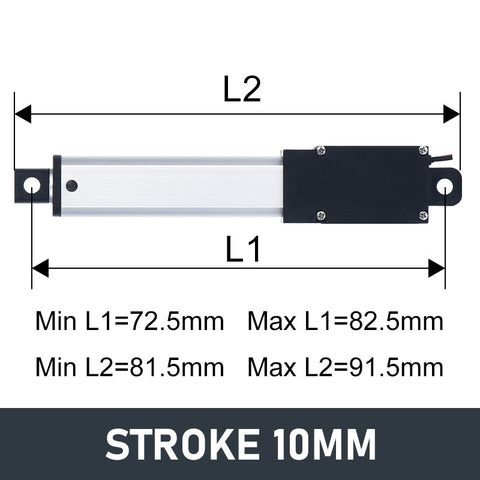

OUTLINE DIMENSION DRAWING
