Electric Linear Motion Actuator 24V DC Motor 235N 51LB Load - DHLA130-A2
$15.00
TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 8 10 15 30 50 150 Load Pull Capacity(N) 235 150 120 80 40 24 8 Load Push Capacity(N) 235 150 120 80 40 24 8 Self-locking Capacity(N) 190 100 80 60 30 20 6.5 Stroke Length 10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm Motor Power 5W Operating Temperature...
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
||||||
|
Speed (MM/S)
|
5 | 8 | 10 | 15 | 30 | 50 | 150 |
|
Load Pull Capacity(N)
|
235 | 150 | 120 | 80 | 40 | 24 | 8 |
|
Load Push Capacity(N)
|
235 | 150 | 120 | 80 | 40 | 24 | 8 |
|
Self-locking Capacity(N)
|
190 | 100 | 80 | 60 | 30 | 20 | 6.5 |
|
Stroke Length
|
10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm
|
||||||
|
Motor Power
|
5W
|
||||||
|
Operating Temperature
|
-10°C~+50°C
|
||||||
|
Limit Switches
|
Built-in
|
||||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
||||||
|
Color
|
Black
|
||||||
|
Inner Tube
|
Aluminum tube
|
||||||
|
Material
|
Aluminum
|
||||||
|
Protection Class
|
IP43
|
||||||
|
Noise
|
Below 55dB
|
||||||
|
Mechanical Life
|
More than 10,000 times
|
||||||
|
Note
|
Customized DC6V
|
||||||

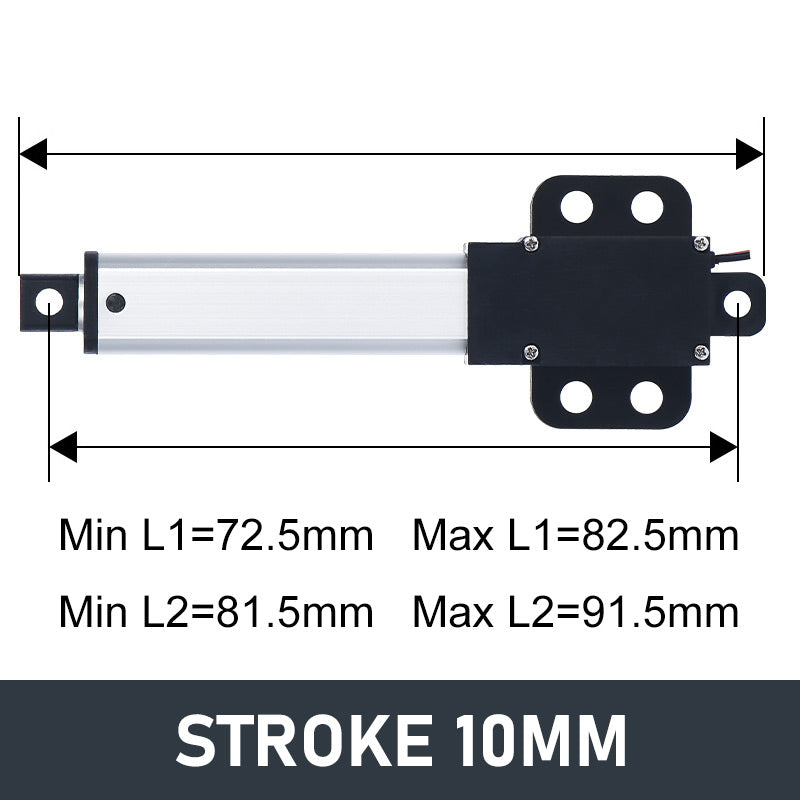

OUTLINE DIMENSION DRAWING
