Electric Linear Motion Actuator 6V DC Motor 180N 40LB Load - DHLA130-A1-6V
$16.00
TECHNICAL PARAMETERS Voltage DC6V No-Load Speed (MM/S) 150 50 28 14 7 3.5 Load Pull Capacity(N) 8 18 40 80 120 180 Load Push Capacity(N) 8 18 40 80 120 180 Self-locking Capacity(N) 60 10 20 50 70 150 Stroke Length Standard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM...
TECHNICAL PARAMETERS
|
Voltage
|
DC6V
|
||||||
|
No-Load Speed (MM/S)
|
150 | 50 | 28 | 14 | 7 | 3.5 | |
|
Load Pull Capacity(N)
|
8 | 18 | 40 | 80 | 120 | 180 | |
|
Load Push Capacity(N)
|
8 | 18 | 40 | 80 | 120 | 180 | |
|
Self-locking Capacity(N)
|
60 | 10 | 20 | 50 | 70 | 150 | |
|
Stroke Length
|
Standard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM
|
||||||
|

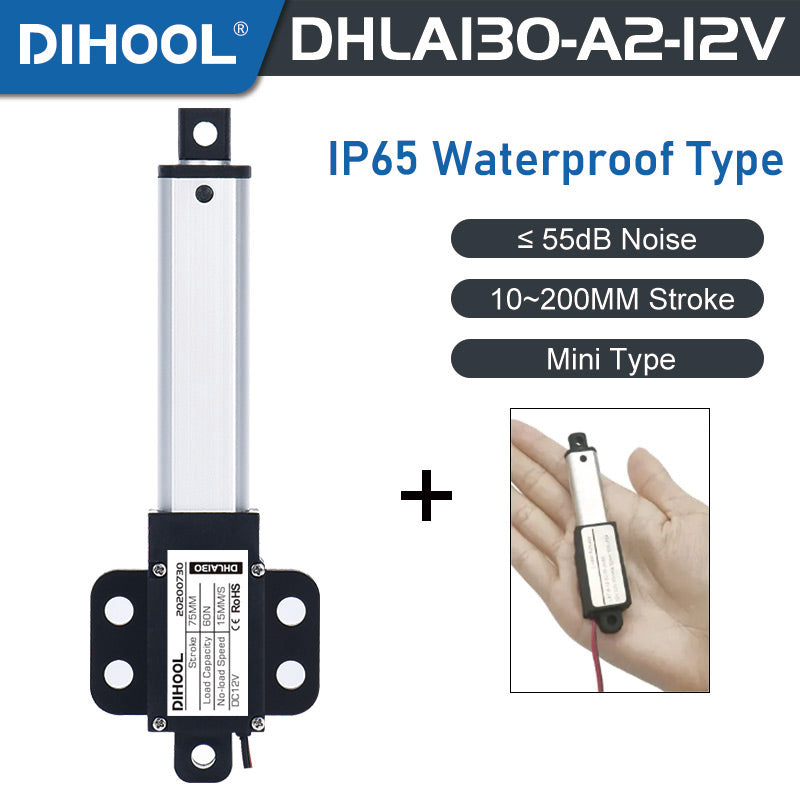

Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM
|
|||||||
|
Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM
|
|||||||
|
Motor Power
|
5W
|
||||||
|
Operating Temperature
|
-10°C~+50°C
|
||||||
|
Limit Switches
|
Built-in
|
||||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
||||||
|
Color
|
Black
|
||||||
|
Inner Tube
|
Aluminum tube
|
||||||
|
Material
|
Aluminum
|
||||||
|
Protection Class
|
IP43/IP65
|
||||||
|
Noise
|
Below 55dB
|
||||||
|
Mechanical Life
|
More than 10,000 times
|
||||||
|
Note
|
Customized DC6V
|
||||||

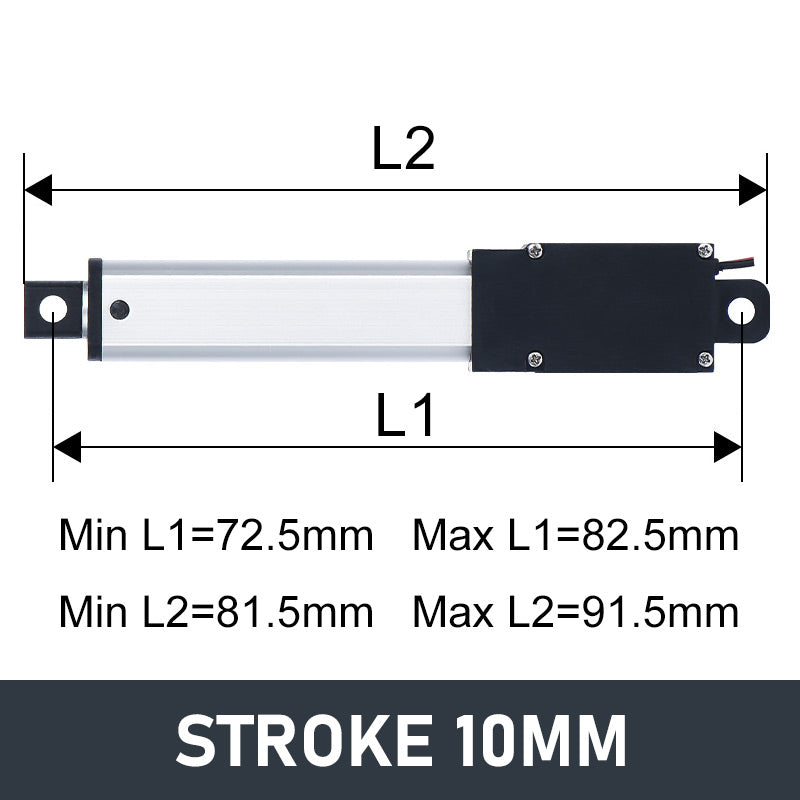

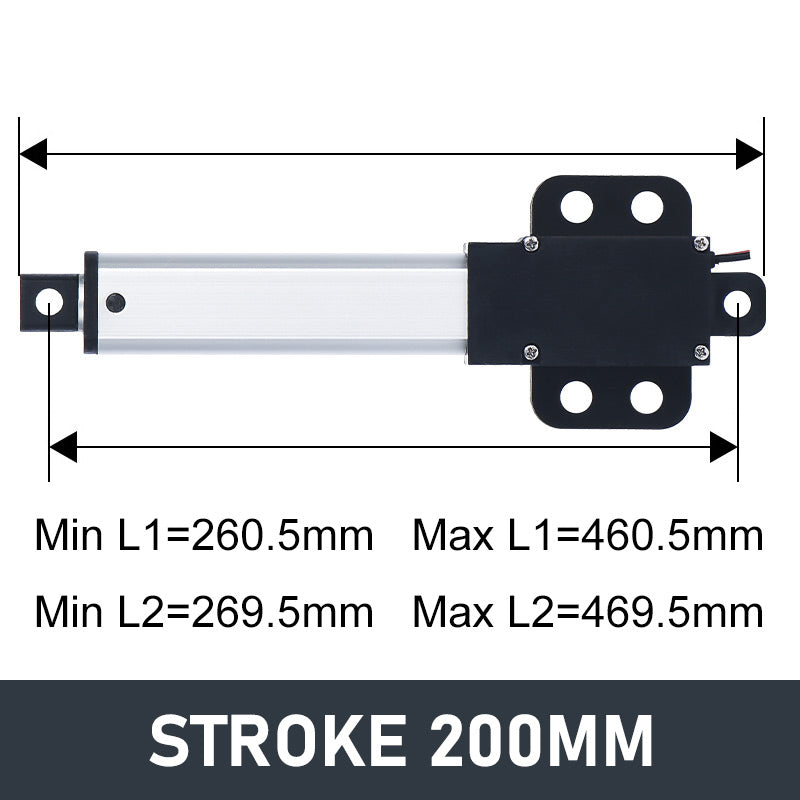

OUTLINE DIMENSION DRAWING
