IPS-C27 Controller
$340.00
TECHNICAL PARAMETERS Model IPS-C27 with USB Working Frequency 50/60Hz Input Voltage AC100-240V Working Temperature 0-40℃ Output Voltage DC24V Working Humidity 20%-90% Power 120W Max 4A Storage Temperature -20℃~90℃ Receiver USB Charging port Receiving Method Location memory and display Applicable Battery Hall 6-Wire Control Key Mode Press Continuous Optional Functions RF433...
TECHNICAL PARAMETERS
| Model | IPS-C27 with USB | Working Frequency | 50/60Hz |
| Input Voltage | AC100-240V | Working Temperature | 0-40℃ |
| Output Voltage | DC24V | Working Humidity | 20%-90% |
| Power | 120W Max 4A | Storage Temperature | -20℃~90℃ |
| Receiver | USB Charging port | Receiving Method | Location memory and display |
| Applicable Battery | Hall 6-Wire Control | Key Mode | Press Continuous |
| Optional Functions | RF433 Remote Control / Bluetooth APP Control | ||
Note: You need to consult us before you can modify the controller. Please do not modify randomly, it will cause the electric actuator to not work. You Need to record every value (n01-n10) before modification
1. Long press V
2. Menu index: S+∧ key combination, then press 1,2,3 key combination to enter the menu;
3. Enter the menu, adjust to 05 by using the ∧ key; display the height you need 610 or two sections 700
4. Press the S key to save the data, and then press the S+V key to display dnE save successfully

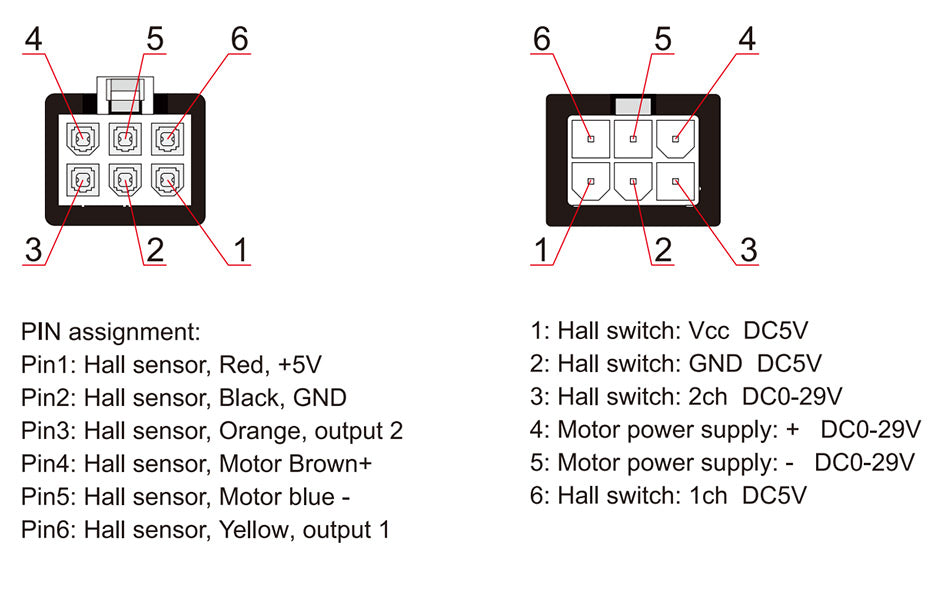

WIRING INSTRUCTION
