IPS-C7 Controller
$40.00
TECHNICAL PARAMETERS
Model
IPS-C7
Working Frequency
50/60Hz
Input Voltage
DC24V
Working Temperature
0-40℃
Output Voltage
DC24V
Working Humidity
20%-90%
Power
600W Max 25A
Storage Temperature
-20℃~90℃
Receiver
433MHz
Receiving Method
Radio Frequency
Applicable Battery
23A
Key Mode
Upper and lower limit control

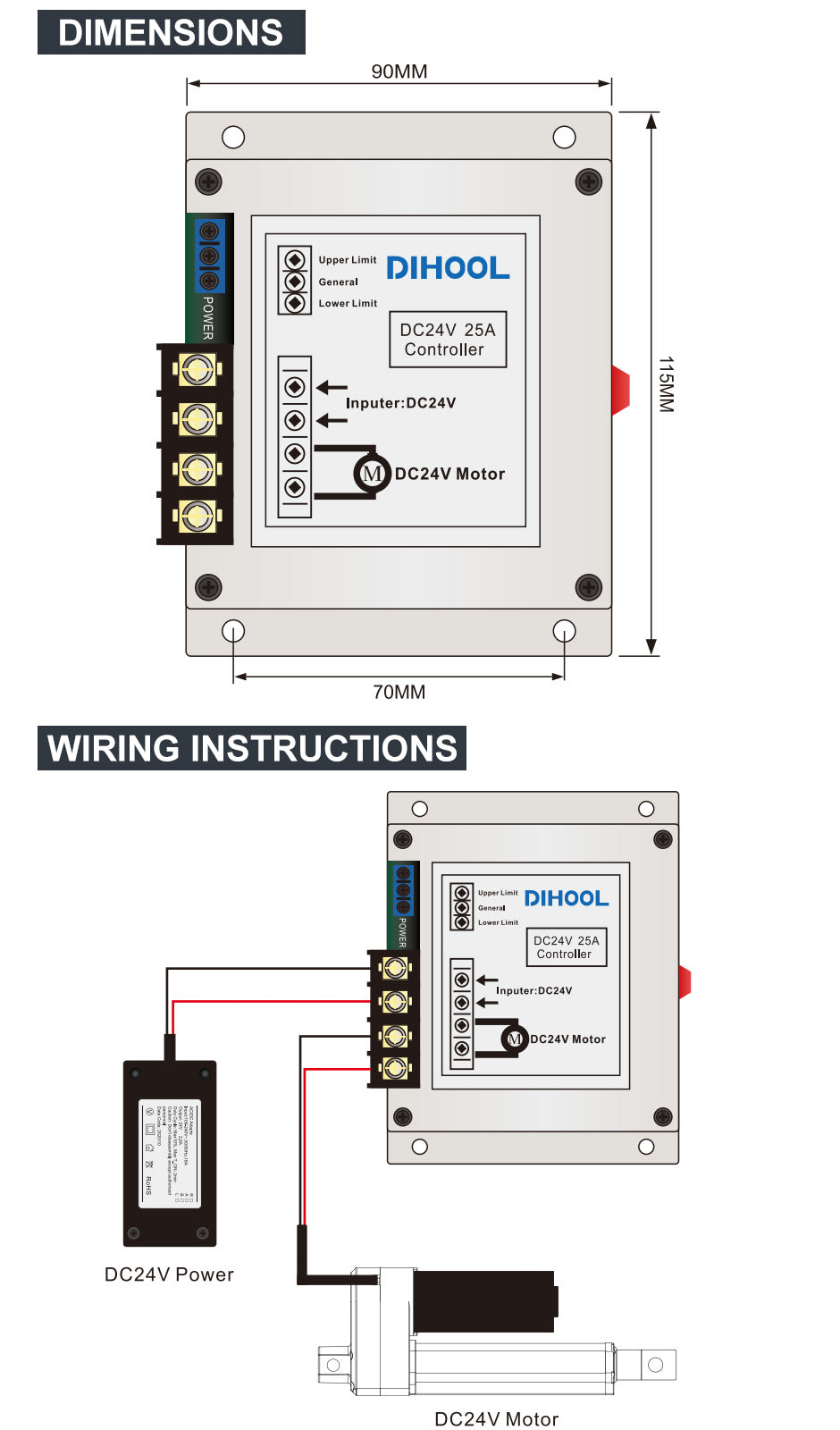

DIMENSIONS & WIRING INSTRUCTION
TECHNICAL PARAMETERS
| Model | IPS-C7 | Working Frequency | 50/60Hz |
| Input Voltage | DC24V | Working Temperature | 0-40℃ |
| Output Voltage | DC24V | Working Humidity | 20%-90% |
| Power | 600W Max 25A | Storage Temperature | -20℃~90℃ |
| Receiver | 433MHz | Receiving Method | Radio Frequency |
| Applicable Battery | 23A | Key Mode | Upper and lower limit control |
DIMENSIONS & WIRING INSTRUCTION
