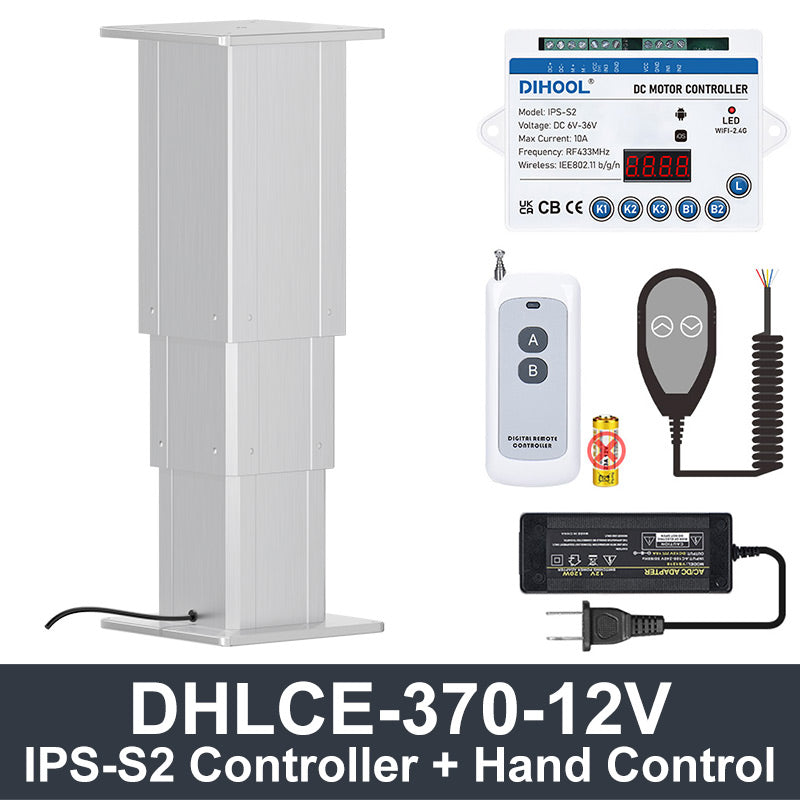

DHLCE-AL 3 Stage Electric Lifting Column - AL Panel 1000N 220LB Load - DHLCE-370
$212.00
TECHNICAL PARAMETERS Model DHLCE270A DHLCE320A DHLCE370A DHLCE420A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE270B DHLCE320B DHLCE370B DHLCE420B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 275 325 370 430 Final Height FH (MM) 545 695 795 730 Stroke Length S (MM) 270 370 425 300 Section 3...
TECHNICAL PARAMETERS
|
Model
|
DHLCE270A | DHLCE320A | DHLCE370A | DHLCE420A |
|
Panel Size
|
200*200 | 200*200 | 200*200 | 200*200 |
|
Model
|
DHLCE270B | DHLCE320B | DHLCE370B | DHLCE420B |
|
Panel Size
|
160*160 | 160*160 | 160*160 | 152*152 |
|
Initial Height H (MM)
|
275 | 325 | 370 | 430 |
|
Final Height FH (MM)
|
545 | 695 | 795 | 730 |
|
Stroke Length S (MM)
|
270 | 370 | 425 | 300 |
|
Section
|
3 | 3 | 3 | 2 |
|
Voltage
|
DC24~32V / DC12~19V / Hall
|
|||||
|
No-Load Speed
|
15V-4.5MM/S | 27V-4.5MM/S | 27V-9MM/S | |||
|
Max Load Capacity
|
80KG | 100KG | 70KG | |||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Material
|
Aluminum Body, Aluminum Panel
|
|||||
|
Note
|
Other specifications, aluminum shell color and connection panel size can be customized.
The Max Load of 260A/260B DC30V-5MM/S is less than 100KG Will Cause Abnormal Noise If Overload |
|||||
OUTLINE DIMENSION DRAWING
