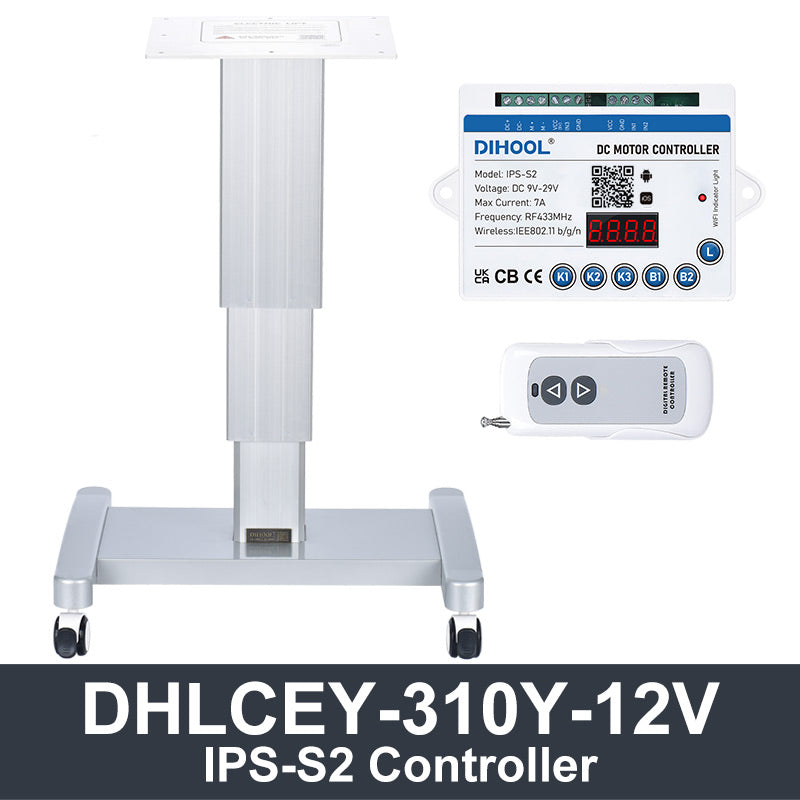

Movable Tatami 3 Stage Electric Mobile Lifting Column DC 12V/24V/Hall Motor 1200N 264LB Load - DHLCEY-310Y
$210.00
TECHNICAL PARAMETERS Model DHLCE260Y DHLCE310Y DHLCE360Y DHLCE410Y Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 350 400 450 500 Final Height FH (MM) 640 760 890 800 Stroke Length S (MM) 290 360 440 300 Section 3 3 3 2 Voltage DC24~32V / DC12~19V / Hall 24-32V Speed...
TECHNICAL PARAMETERS
|
Model
|
DHLCE260Y | DHLCE310Y | DHLCE360Y | DHLCE410Y |
|
Panel Size
|
160*160 | 160*160 | 160*160 | 152*152 |
|
Initial Height H (MM)
|
350 | 400 | 450 | 500 |
|
Final Height FH (MM)
|
640 | 760 | 890 | 800 |
|
Stroke Length S (MM)
|
290 | 360 | 440 | 300 |
|
Section
|
3 | 3 | 3 | 2 |
|
Voltage
|
DC24~32V / DC12~19V / Hall 24-32V
|
|||||
|
Speed
|
15V-5MM/S
|
30V-5MM/S
|
30V-10MM/S
|
|||
|
Max Load Capacity
|
80KG | 120KG | 80KG | |||
|
Operating Temperature
|
0°C~+40°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Material
|
Aluminum Body, Iron Panel
|
|||||
|
Note
|
*Other specifications, aluminum shell color and connection panel size can be customized.
|
|||||
OUTLINE DIMENSION DRAWING
