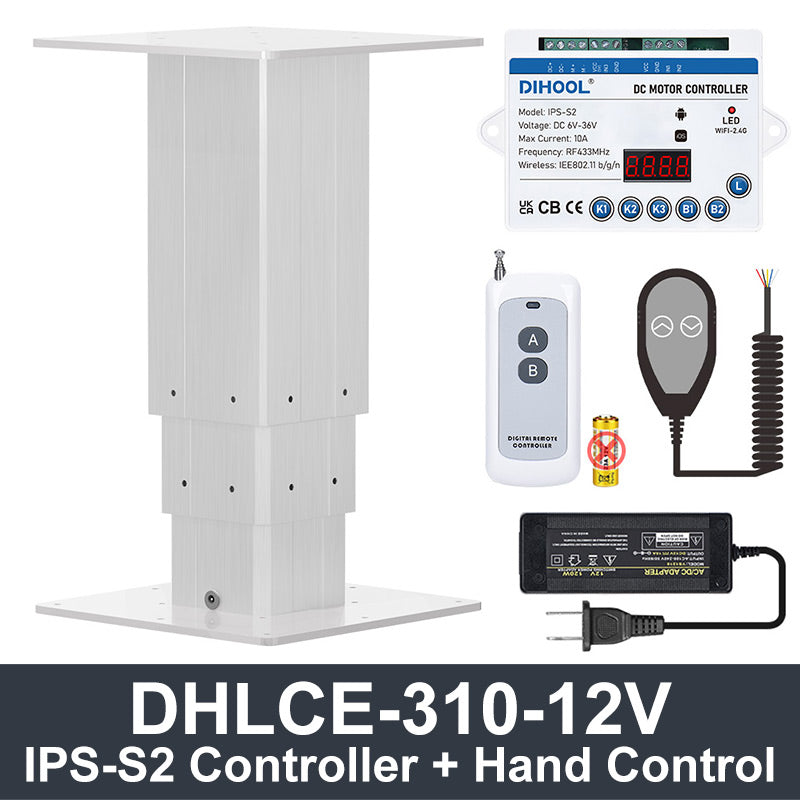

DHLCE-IR 3 Stage Electric Lifting Column - IR Panel 1000N 220LB Load - DHLCE-310
$160.00
TECHNICAL PARAMETERS Model DHLCE260A DHLCE310A DHLCE360A DHLCE410A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE260B DHLCE310B DHLCE360B DHLCE410B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 265 315 360 420 Final Height FH (MM) 540 690 790 720 Stroke Length S (MM) 275 375 430 300 Section 3...
TECHNICAL PARAMETERS
|
Model
|
DHLCE260A | DHLCE310A | DHLCE360A | DHLCE410A |
|
Panel Size
|
200*200 | 200*200 | 200*200 | 200*200 |
|
Model
|
DHLCE260B | DHLCE310B | DHLCE360B | DHLCE410B |
|
Panel Size
|
160*160 | 160*160 | 160*160 | 152*152 |
|
Initial Height H (MM)
|
265 | 315 | 360 | 420 |
|
Final Height FH (MM)
|
540 | 690 | 790 | 720 |
|
Stroke Length S (MM)
|
275 | 375 | 430 | 300 |
|
Section
|
3 | 3 | 3 | 2 |
|
Voltage
|
DC24~32V / DC12~19V / Hall
|
|||||
|
No-Load Speed
|
15V-4.5MM/S | 27V-4.5MM/S | 27V-9MM/S | |||
|
Max Load Capacity
|
80KG | 100KG | 70KG | |||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Material
|
Aluminum Body, Iron Panel
|
|||||
|
Note
|
Other specifications, aluminum shell color and connection panel size can be customized.
The Max Load of 260A/260B DC30V-5MM/S is less than 100KG Will Cause Abnormal Noise If Overload |
|||||
OUTLINE DIMENSION DRAWING
