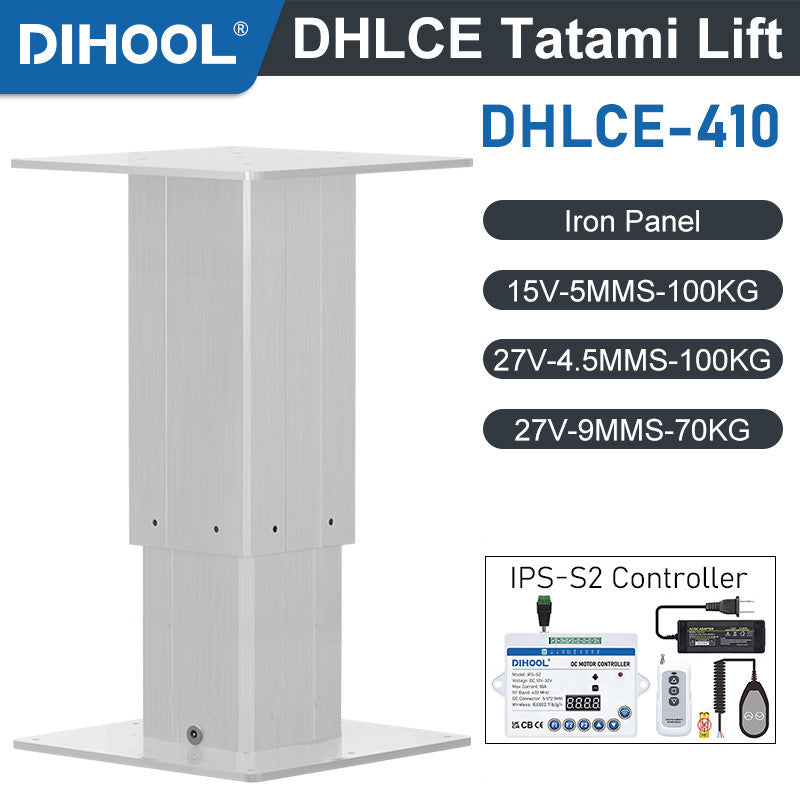

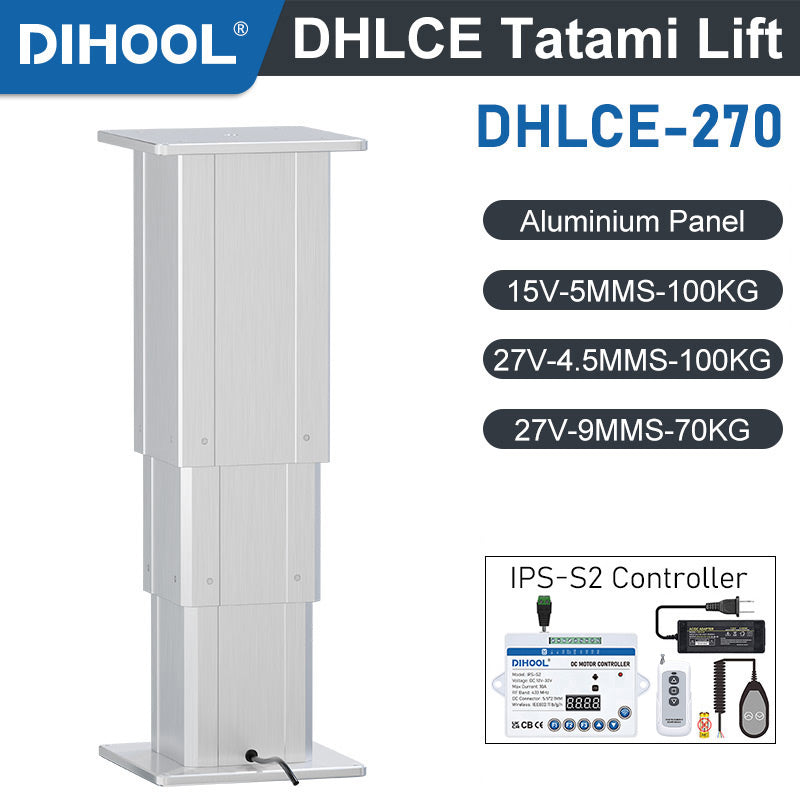

Tatami Lifting Column Iron Plate 12V DC Motor 1600N 352LB Load - DHLCE
$242.87
TECHNICAL PARAMETERS Model DHLCE260A DHLCE310A DHLCE360A DHLCE410A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE260B DHLCE310B DHLCE360B DHLCE410B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 265 315 360 420 Final Height FH (MM) 540 690 790 720 Stroke Length S (MM) 275 375 430 300 Section 3...
TECHNICAL PARAMETERS
|
Model
|
DHLCE260A | DHLCE310A | DHLCE360A | DHLCE410A |
|
Panel Size
|
200*200 | 200*200 | 200*200 | 200*200 |
|
Model
|
DHLCE260B | DHLCE310B | DHLCE360B | DHLCE410B |
|
Panel Size
|
160*160 | 160*160 | 160*160 | 152*152 |
|
Initial Height H (MM)
|
265 | 315 | 360 | 420 |
|
Final Height FH (MM)
|
540 | 690 | 790 | 720 |
|
Stroke Length S (MM)
|
275 | 375 | 430 | 300 |
|
Section
|
3 | 3 | 3 | 2 |
|
Voltage
|
DC12V
|
|||||
|
Speed (MM/S)
|
5 | 8 | 12 | |||
|
Load Push Capacity (N)
|
1600 | 1000 | 600 | |||
|
Load Pull Capacity (N)
|
1600 | 1000 | 600 | |||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Material
|
Aluminum Body, Iron Panel
|
|||||
|
Note
|
*Other specifications, aluminum shell color and connection panel size can be customized.
|
|||||
OUTLINE DIMENSION DRAWING
