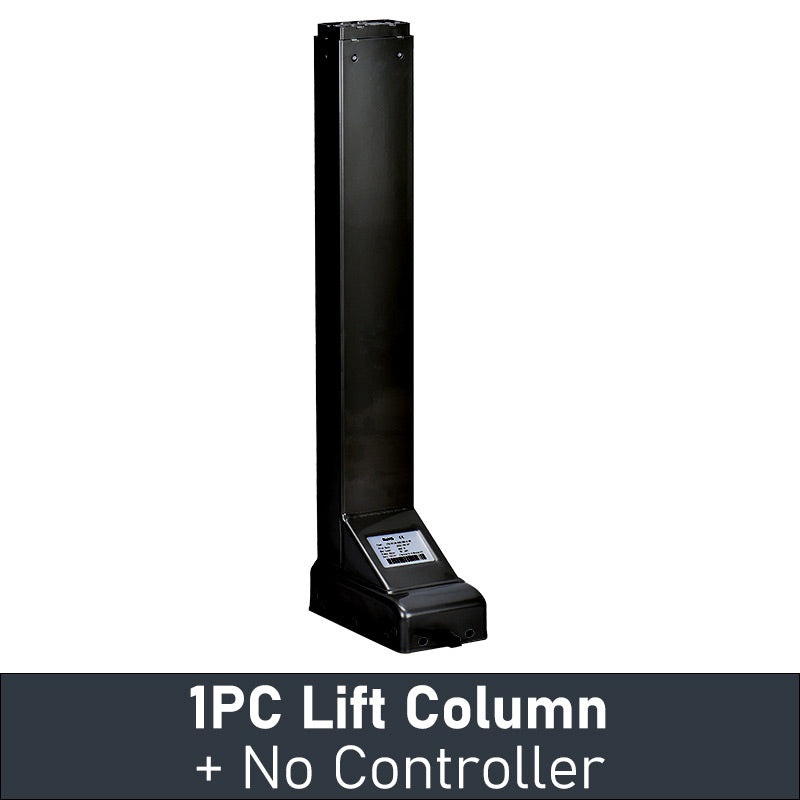

Electric Lifting Column P-Type 24V-32V DC Motor 800N 176LB Load - DHLC800-P
$100.00
TECHNICAL PARAMETERS Model 500P-EC 650P-EC 500P 650P Initial Height (MM) 625 610 650 560 Final Height (MM) 1125 1230 1150 1210 Stroke Length (MM) 500 620 500 650 Section 2 3 2 3 Input Voltage DC24V-DC32V Load Pull Capacity (N) 800N / 1000N 1200N Load Push Capacity (N) 800N /...
TECHNICAL PARAMETERS
|
Model
|
500P-EC | 650P-EC | 500P | 650P |
|
Initial Height (MM)
|
625 | 610 | 650 | 560 |
|
Final Height (MM)
|
1125 | 1230 | 1150 | 1210 |
|
Stroke Length (MM)
|
500 | 620 | 500 | 650 |
|
Section
|
2 | 3 | 2 | 3 |
|
Input Voltage
|
DC24V-DC32V | |||
|
Load Pull Capacity (N)
|
800N / 1000N | 1200N | ||
|
Load Push Capacity (N)
|
800N / 1000N | 1200N | ||
|
Self-locking Capacity (N)
|
800N / 1000N | 1200N | ||
|
Max Power
|
50W | 55W | ||
|
No-Load Speed
|
15MM/S | 7.5MM/S | 25MM/S | ||
|
Color
|
RAL9005(Black) / RAL7045(Gray) / RAL9016（White）
|
|||
|
Operating Temperature
|
-10°C~+60°C
|
|||
|
Optional Features
|
Hall Sensor
|
|||
|
Limit Switches
|
None
|
|||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||
|
Install Screws
|
M6*16MM, If the Screw is too long, it will damage the motor.
|
|||
|
Rated Working Capacity
|
80% of Max Load, Unable to maintain Max load operation for a long time.
|
|||
|
Note
|
2 Columns lifting system and 4 Columns lifting system,
Any columns cannot exceed 200KG load and needs to be kept fixed. |
|||
OUTLINE DIMENSION DRAWING
