TV Lifting Column Hall Controller 800N 176LB Load - DHLCTV
$0.00
TECHNICAL PARAMETERS Model DHLCTV575 DHLCTV710 DHLCTV850 DHLCTV985 DHLCTV800Y DHLCTV710Y-2 Initial Height (MM) 575 710 850 985 800 800 Final Height (MM) 1225 1610 2050 2485 1700 1700 Stroke Length (MM) 650 900 1200 1500 900 900 TV Stand Size (Inch) 30-60 30-70 40-85 40-100 30-70 30-70 TV Maximum Height (MM)...
TECHNICAL PARAMETERS
|
Model
|
DHLCTV575 | DHLCTV710 | DHLCTV850 | DHLCTV985 | DHLCTV800Y | DHLCTV710Y-2 |
|
Initial Height (MM)
|
575 | 710 | 850 | 985 | 800 | 800 |
|
Final Height (MM)
|
1225 | 1610 | 2050 | 2485 | 1700 | 1700 |
|
Stroke Length (MM)
|
650 | 900 | 1200 | 1500 | 900 | 900 |
|
TV Stand Size (Inch)
|
30-60 | 30-70 | 40-85 | 40-100 | 30-70 | 30-70 |
|
TV Maximum Height (MM)
|
600 | 850 | 1150 | 1400 | 850 | 850 |
|
Section
|
3 | 3 | 3 | 3 | 3 | 3 |
|
Maximum Load
|
80KG/176lb | 80KG/176lb | 120KG/264lb | 120KG/264lb | 75KG/165lb | 160KG/352lb |
|
Voltage
|
AC100-240V Turn DC24V (with controller power supply)
|
|||||
|
Speed
|
25MM/S
|
|||||
|
Operating Temperature
|
-15°C~+65°C
|
|||||
|
Limit Switches
|
None
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Black
|
|||||
|
Carton Size (MM)
|
L:790*W:300*H:210
|
|||||

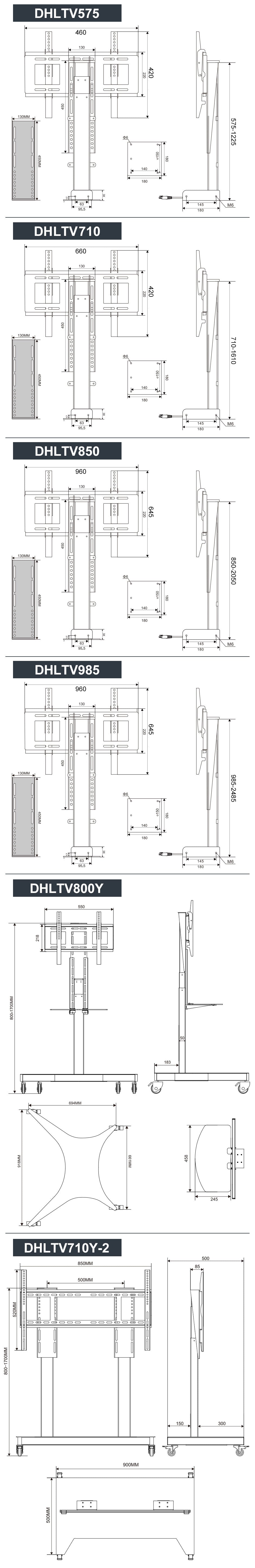

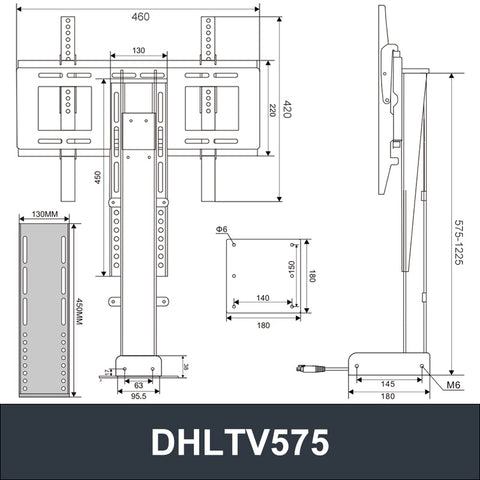

OUTLINE DIMENSION DRAWING
